Product Description

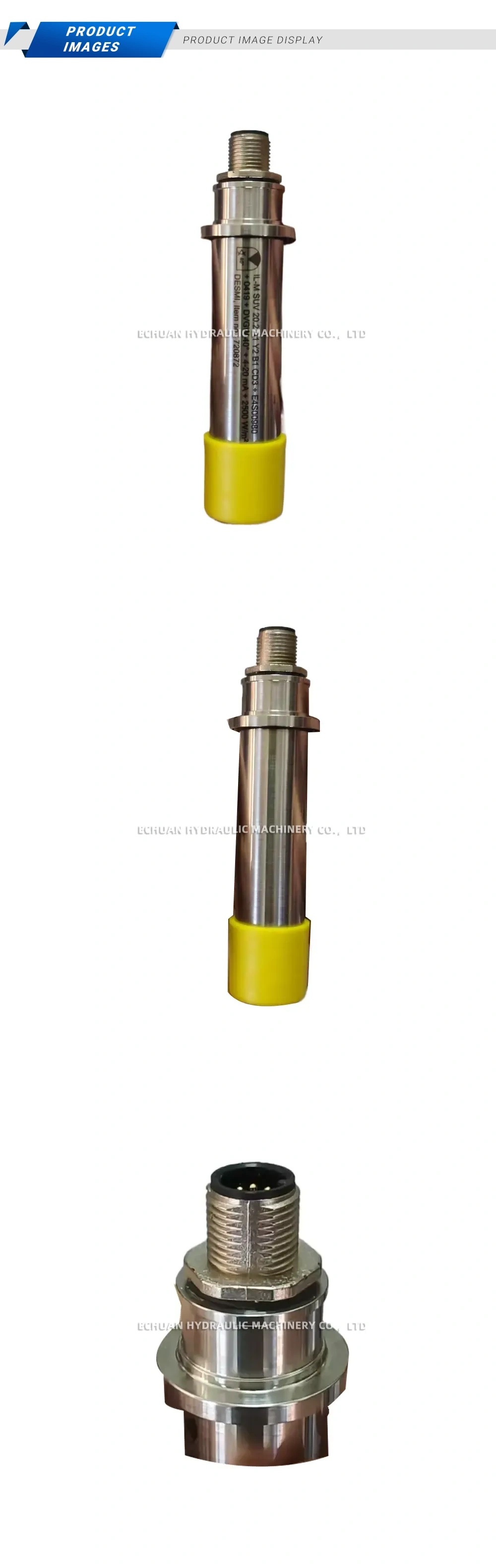

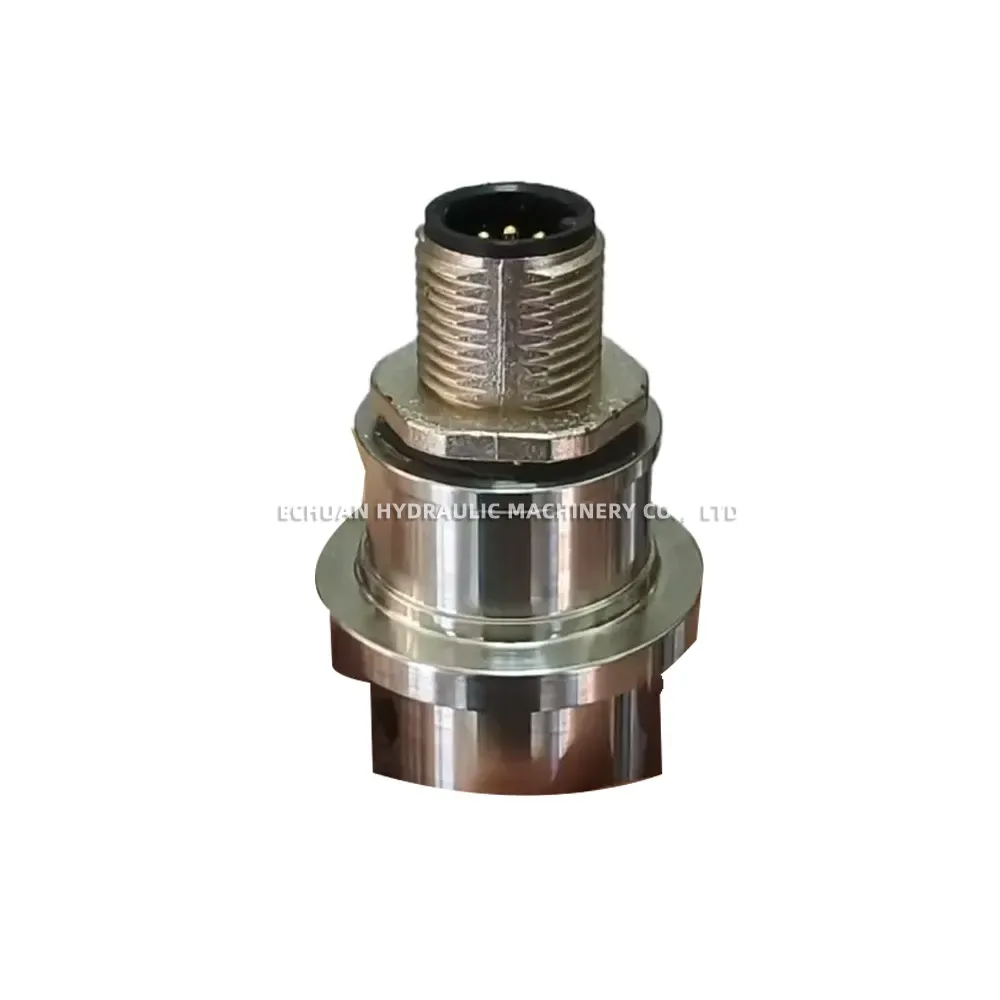

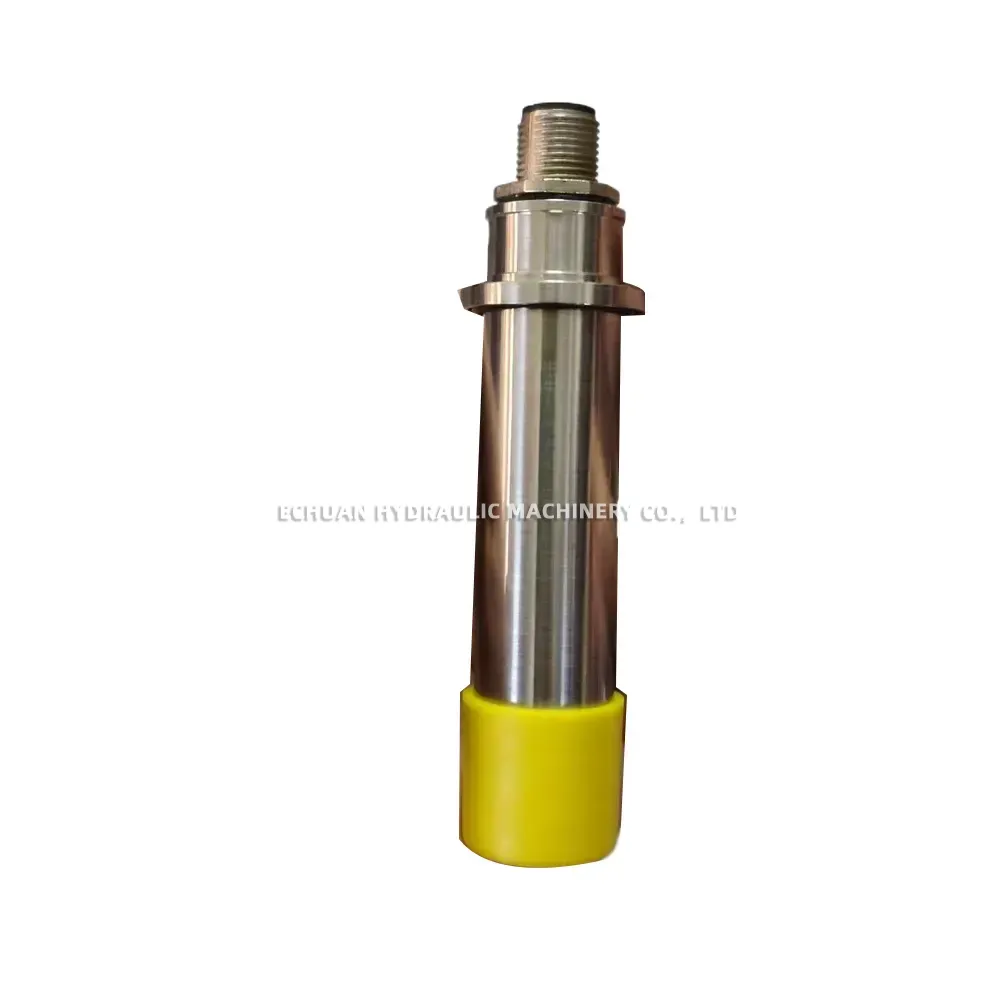

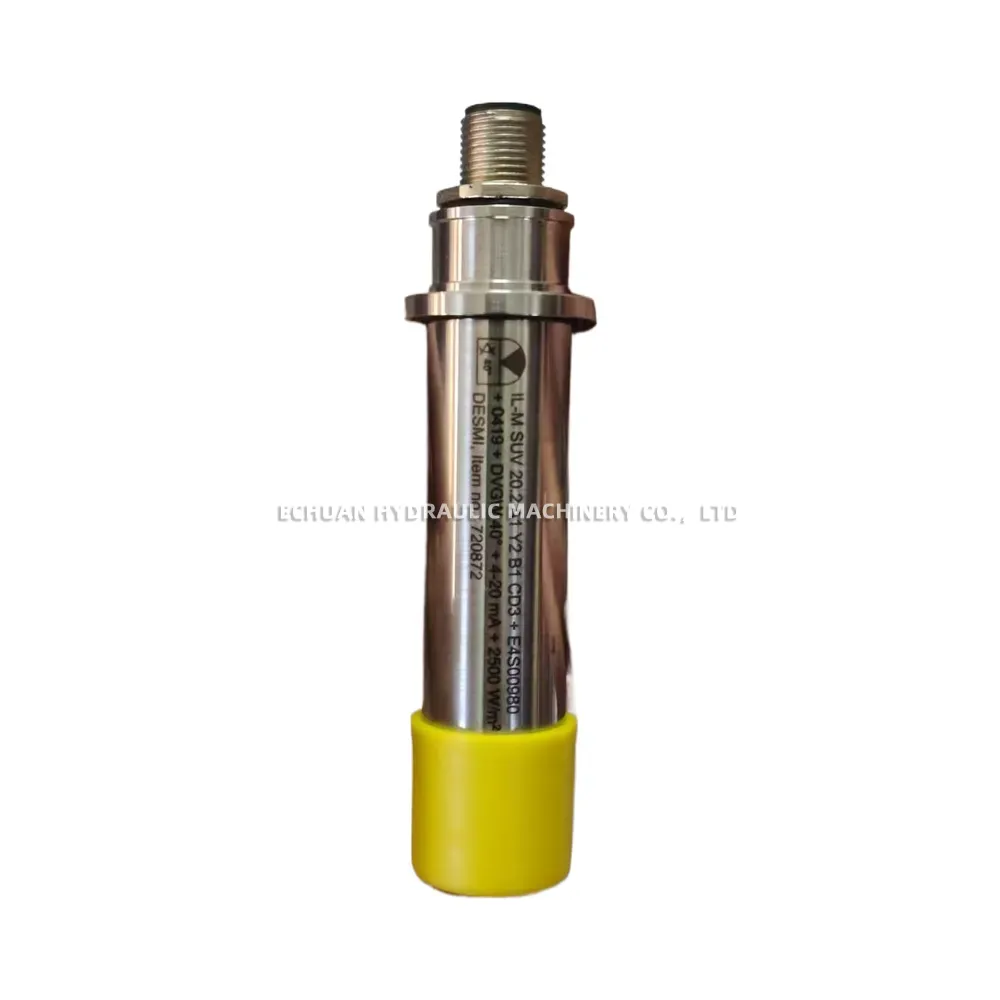

DESMI IL-M SUV 20.2 A1 Y2 B1 CD3 UV Light Intensity Sensor for Ballast Water Treatment System
The DESMI IL-M SUV 20.2 A1 Y2 B1 CD3 is a highly reliable, cylindrical stainless steel UV and light intensity sensor engineered specifically for marine Ballast Water Treatment Systems (BWMS). Designed to ensure optimal performance and regulatory compliance during water purification processes, this robust sensor accurately monitors UV output with a wide measuring range of up to 2500 W/m². It features a flat sensing window at the probe tip for precise detection and delivers a stable 4-20 mA analog output for seamless system integration. Built to withstand harsh marine environments, it comes equipped with a secure male 4-pin M12-style electrical connector and a versatile clamp/flange process connection with a hex mounting nut.
Technical Specifications:
- Brand: DESMI
- Model: IL-M SUV 20.2 A1 Y2 B1 CD3
- Item Number: 720872
- Application: Ballast Water Treatment Systems (BWMS)
- Measuring Range: Up to 2500 W/m²
- Output Signal: Analog 4-20 mA
- Housing Material: Cylindrical stainless steel
- Electrical Connector: Male 4-pin M12-style
- Process Connection: Clamp/flange with hex mounting nut
- Sensor Design: Flat sensing window at the probe tip
- Compliance / Rating: DVGW 40°
DESMI IL-M SUV 20.2 A1 Y2 B1 CD3 UV Light Intensity Sensor for Ballast Water Treatment System
Shop the genuine DESMI IL-M SUV 20.2 A1 Y2 B1 CD3 UV Light Intensity Sensor (Item No. 720872) designed for marine Ballast Water Treatment Systems. This durable stainless steel UV sensor features a 2500 W/m² measuring range, a reliable 4-20 mA analog output, and an M12 4-pin connector to ensure accurate BWMS monitoring and regulatory compliance.
| Brand | DESMI |
|---|---|
| Model | IL-M SUV 20.2 A1 Y2 B1 CD3 |
| Part No. | 1081230083721 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/desmi-il-m-suv-20-2-a1-y2-b1-cd3-uv-light-intensity-sensor-for-ballast-water-treatment-system |
