Product Description
Festo LR-3/8-D-MIDI 159580
The Festo LR-3/8-D-MIDI is a high-performance pressure regulator from the D-series, designed for precise control of compressed air in standard pneumatic applications. This direct-diaphragm regulator ensures a constant output pressure regardless of fluctuations in the input pressure. It features a lockable rotary knob for secure pressure setting and can be easily integrated into service unit combinations. Its robust zinc die-cast housing and versatile mounting options make it a reliable and flexible choice for industrial automation systems.

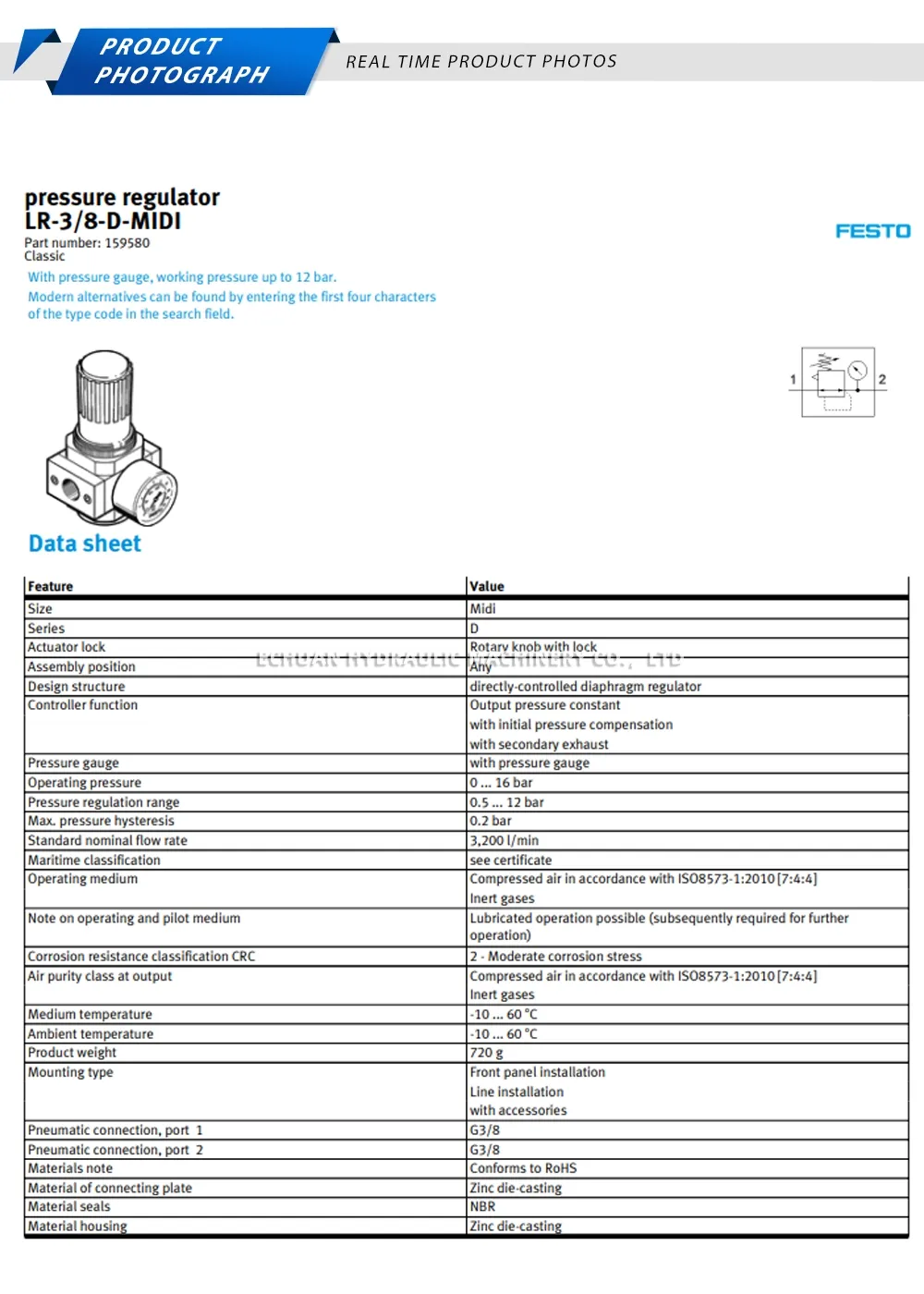

Technical Specifications:
- Size: Midi
- Series: D
- Actuator lock: Rotary knob with lock
- Pneumatic connection: G3/8
- Pressure regulation range: 0.5 … 12 bar
- Operating pressure: 1 … 16 bar
- Standard nominal flow rate: 3,500 l/min
- Design: Directly-controlled diaphragm regulator
- Pressure gauge connection: G1/4
- Ambient temperature: -10 … 60 °C
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
- Housing material: Zinc die-casting
- Seals material: NBR
- Product weight: 660 g









Festo LR-3/8-D-MIDI159580
Model:Festo LR-3/8-D-MIDI159580
