Product Description

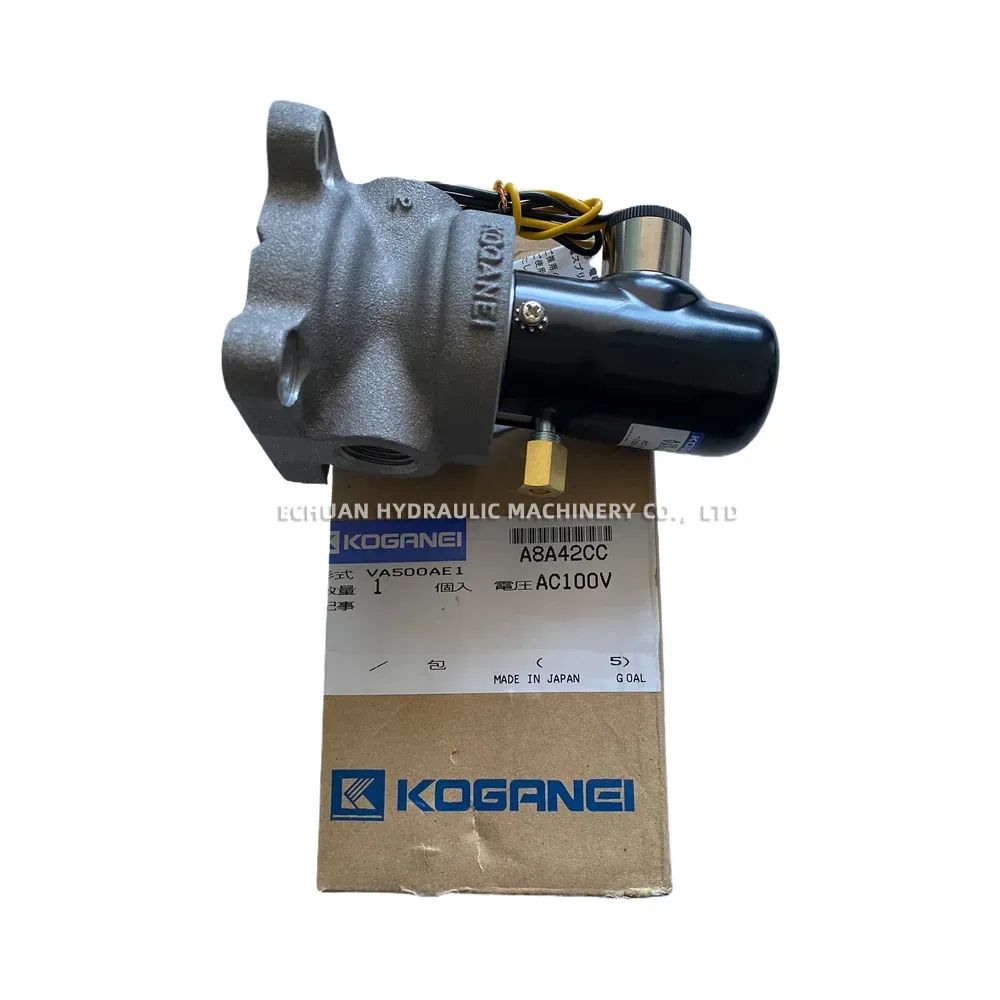

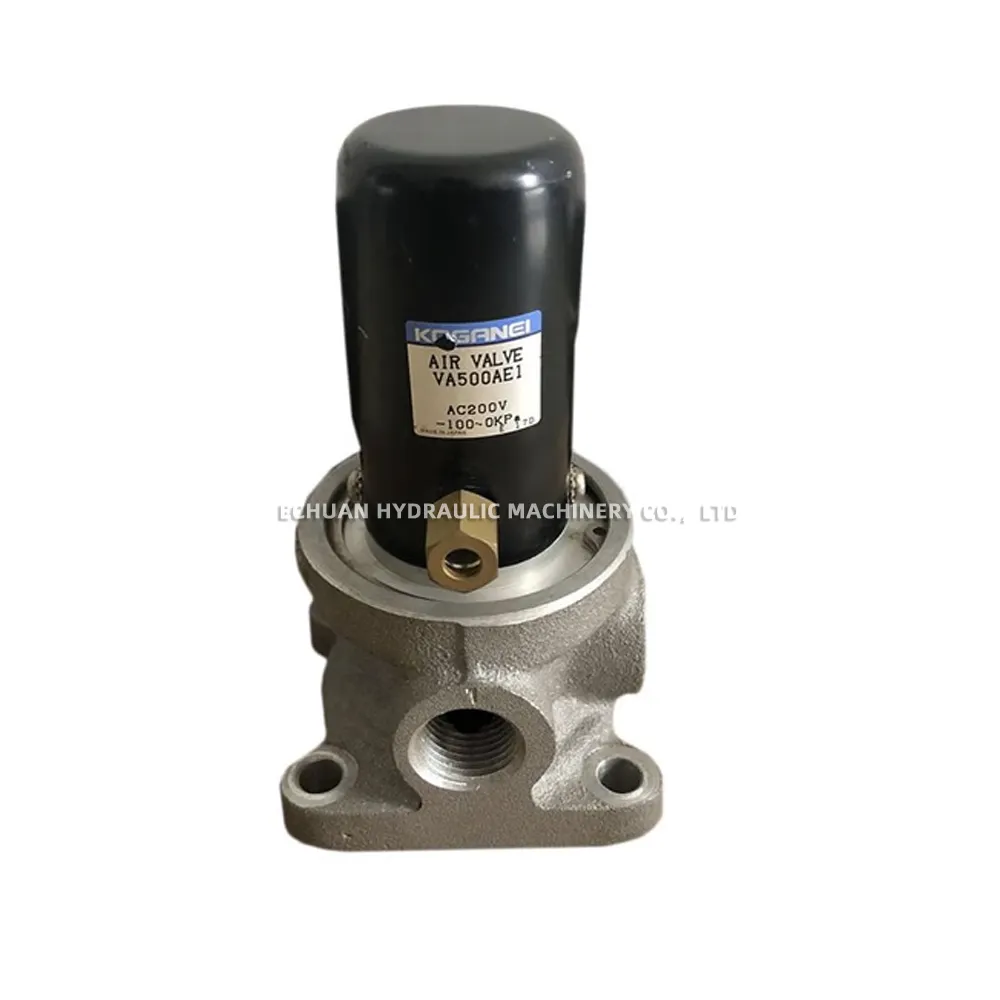

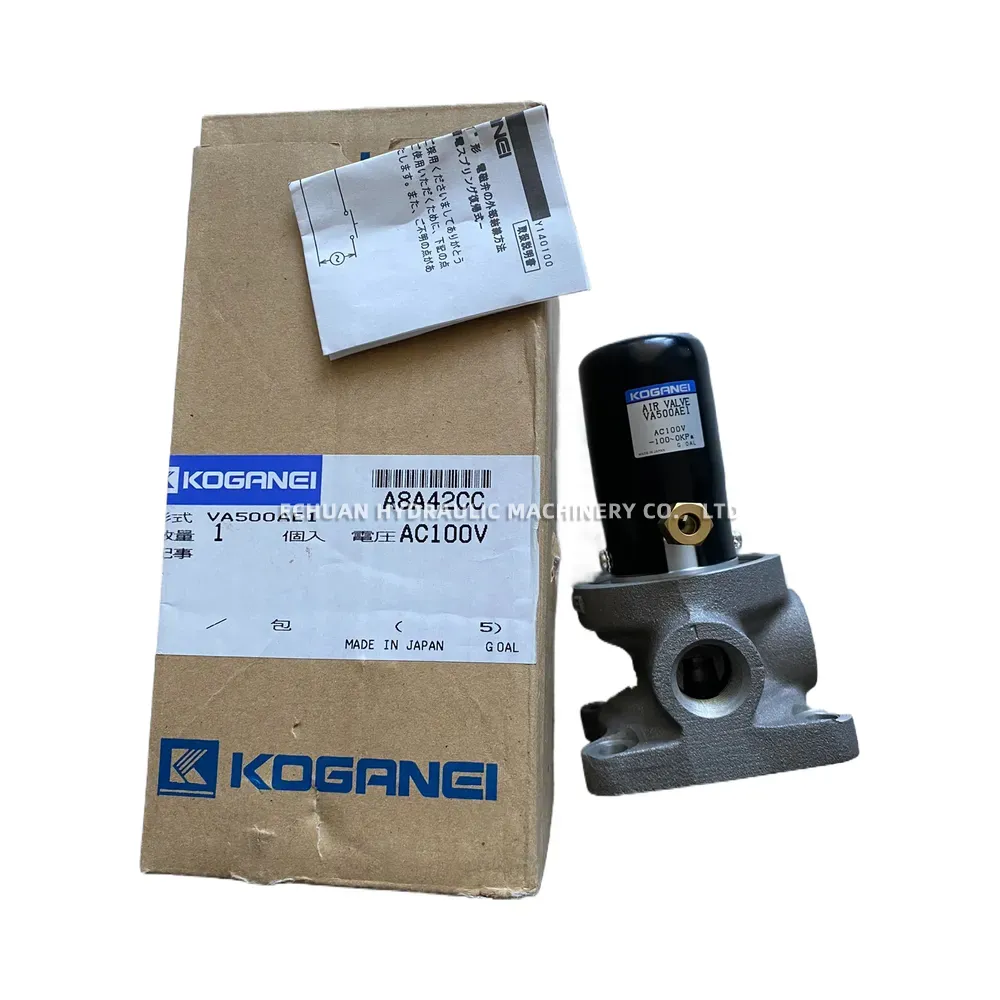

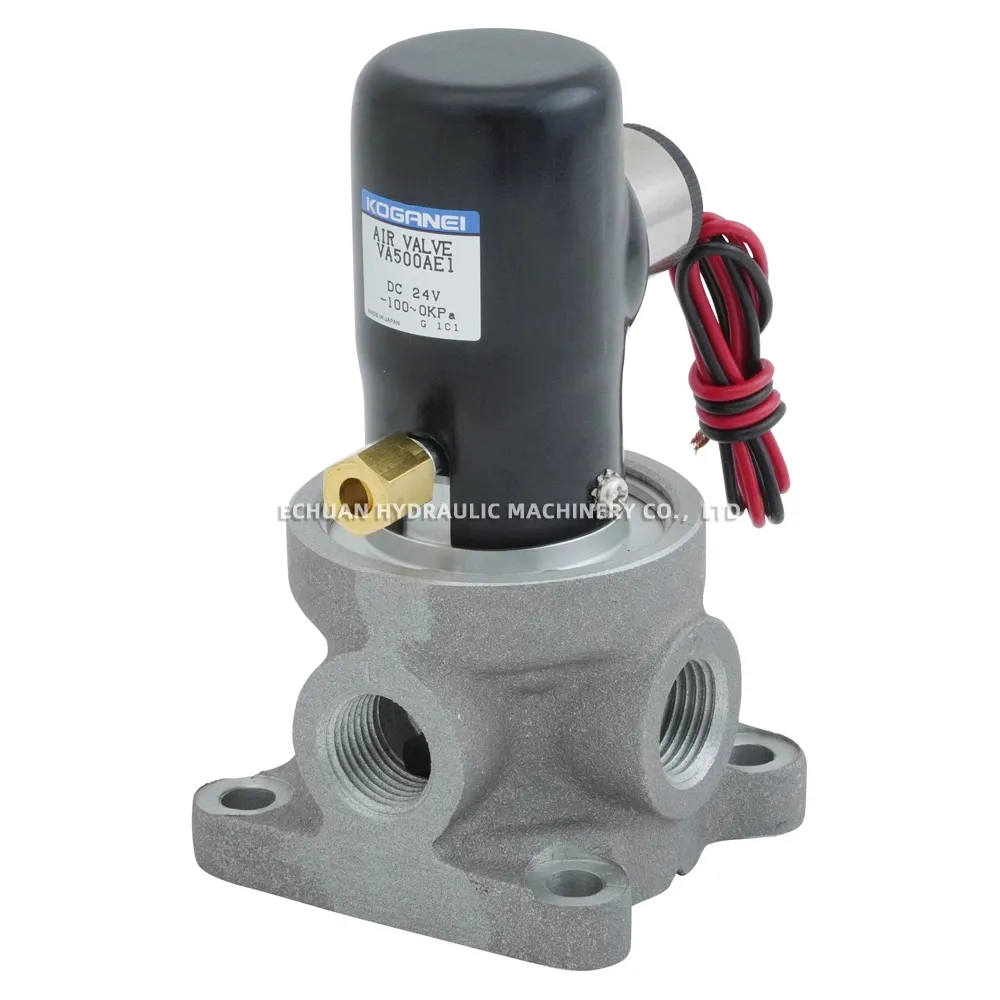

KOGANEI VA500AE1 Solenoid Valve
The KOGANEI VA500AE1 is a compact, direct-acting 3-port solenoid valve designed for reliable switching of air or inert gas in various automation applications. Known for its low power consumption and durability, this valve is suitable for systems requiring precise pneumatic control in limited spaces. It features a body-ported configuration for straightforward installation.
Technical Specifications:
- Valve Type: 3-Port Solenoid Valve, Direct Acting, N.C. (Normally Closed)
- Fluid: Air / Inert gas
- Operating Pressure Range: 0 to 0.7 MPa
- Orifice Diameter: ø1.0 mm
- Port Size: M5 x 0.8
- Rated Voltage: DC24V (Standard for AE1 suffix)
- Response Time (ON/OFF): 10 ms / 10 ms or less (at 0.5 MPa)
- Effective Area (Cv factor): 0.09
- Ambient Temperature: 5 to 50 °C
- Electrical Entry: Lead wire (300 mm)
- Power Consumption: 1.8 W
KOGANEI VA500AE1
Model:KOGANEI VA500AE1
