Product Description
Leuze PRK25C/4P-M12
The Leuze PRK25C/4P-M12 is a high-performance retro-reflective photoelectric sensor from the reliable 25C series. It is engineered for precise object detection in a wide range of industrial automation applications. Featuring a polarization filter, this sensor excels at reliably detecting shiny, reflective, or transparent objects without false triggers. Its robust, compact housing with an IP67/IP69K protection rating ensures durability in harsh environments, including those with high-pressure washdowns. The sensor is equipped with a standard 4-pin M12 connector for simple and fast integration, and sensitivity can be easily adjusted via a potentiometer, making it a versatile and user-friendly solution for packaging, logistics, and material handling systems.

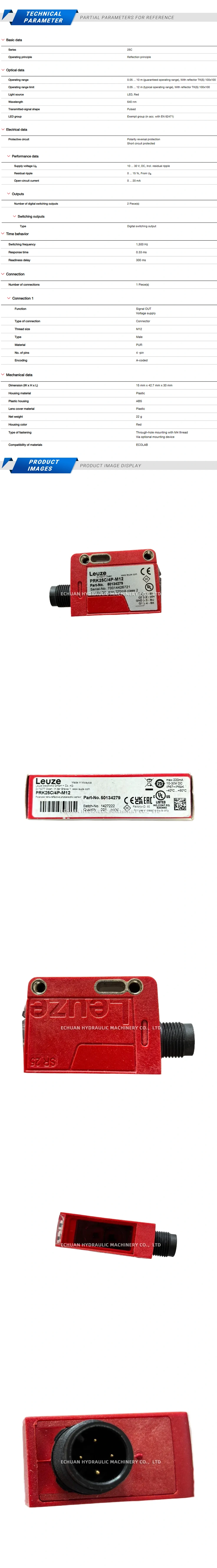

Technical Specifications:
- Series: 25C
- Operating principle: Retro-reflective principle with polarization filter
- Operating range: 0.05 … 7.2 m (with TK 100×100 reflector)
- Switching output: 2x PNP, light/dark switching selectable
- Light source: LED, Red
- Connection: M12 connector, 4-pin
- Supply voltage: 10 … 30 V DC
- Degree of protection: IP 67, IP 69K

Leuze PRK25C/4P-M12
Discover the Leuze PRK25C/4P-M12 retro-reflective photoelectric sensor, featuring a 7.2m range, polarization filter for shiny objects, dual PNP outputs, and a rugged IP67/IP69K housing with an M12 connector for reliable industrial automation.
