Product Description

Leuze PRK15.XD1/4P-M12

The Leuze PRK15.XD1/4P-M12 is a high-performance retro-reflective photoelectric sensor designed for reliable object detection in demanding industrial environments. Part of the robust 15 series, this sensor utilizes a visible red LED light source for easy alignment and offers a substantial operating range. Its durable ABS plastic housing with an IP67/IP69K protection rating ensures dependable operation even in harsh conditions with exposure to dust and high-pressure water jets. The sensor features a standard 4-pin M12 connector for quick and secure installation, and its PNP push-pull output provides flexible integration into various control systems. It’s an ideal solution for applications in packaging, material handling, and general automation.

Technical Specifications:

  • Operating principle: Retro-reflective

  • Operating range: 0.05 – 7.2 m (with TK 100×100 reflector)

  • Light source: LED, Red

  • Switching output: PNP, Push-pull

  • Switching frequency: 1,000 Hz

  • Connection: M12 connector, 4-pin

  • Supply voltage: 10 – 30 V DC

  • Degree of protection: IP 67 / IP 69K

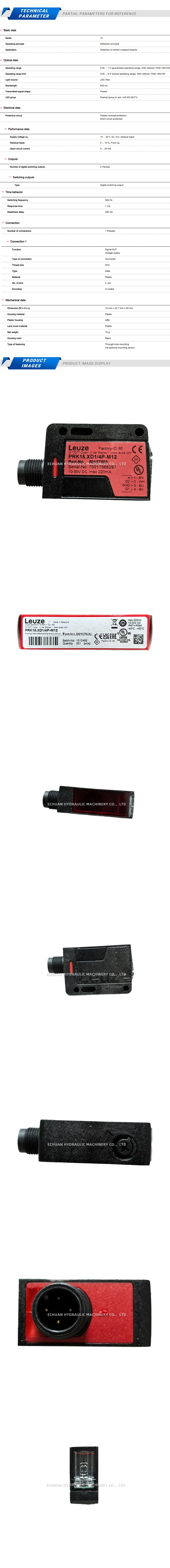

Leuze PRK15.XD1/4P-M12 Description

Leuze PRK15.XD1/4P-M12

Leuze PRK15.XD1/4P-M12 retro-reflective photoelectric sensor with a 7.2m range, visible red light, PNP output, and a 4-pin M12 connector for industrial automation.
