Leuze LRT 8/24.04-50-S12

The Leuze LRT 8/24.04-50-S12 is a high-performance luminescence scanner designed for the reliable detection of luminescent marks and materials. It operates using a UV-LED light source, which excites fluorescent substances that are invisible to the human eye, causing them to glow. The sensor then detects this glow, providing a stable switching signal. Housed in a robust metal enclosure and featuring a simple teach-in function, this scanner is ideal for demanding industrial applications such as packaging, labeling, and quality control where precise mark detection is critical, even on challenging or structured surfaces.

Technical Specifications:

  • Series: 8

  • Operating principle: Luminescence scanner

  • Operating range: 20 – 50 mm

  • Light source: UV-LED (375 nm)

  • Supply voltage: 10 – 30 V DC

  • Switching output: Push-pull (PNP/NPN)

  • Switching frequency: 1,000 Hz

  • Connection: M12 connector, 4-pin

  • Degree of protection: IP 67

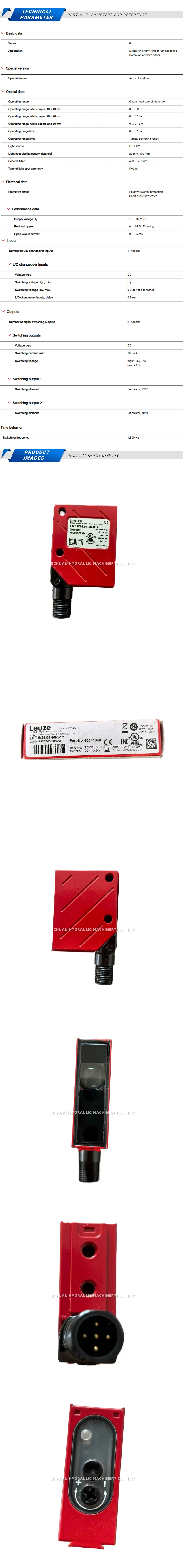

Leuze LRT 8/24.04-50-S12 Description

Leuze LRT 8/24.04-50-S12

Discover the Leuze LRT 8/24.04-50-S12, a compact luminescence scanner with a 20-50mm range and M12 connector. Engineered for precise detection of fluorescent marks in industrial automation and packaging applications.

BrandLeuze
ModelLRT 8/24.04-50-S12
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/leuze-lrt-8-24-04-50-s12
