Product Description

Leuze PRK3CL.1A3/6T-M8

The Leuze PRK3CL.1A3/6T-M8 is a high-performance photoelectric retro-reflective sensor from the 3C series, designed for reliable object detection in demanding industrial automation applications. It utilizes a precise, visible red laser light source (Class 1) and a polarization filter to ensure accurate detection, even with shiny or reflective objects. Thanks to its innovative autocollimation principle, this sensor excels at detecting objects through very small openings. The robust plastic housing with an IP67/IP69K protection rating guarantees durability in harsh environments. Featuring a push-pull switching output with selectable light/dark switching and a standard M8 connector, the PRK3CL.1A3/6T-M8 offers flexible and straightforward integration into existing systems.

Technical Specifications:

  • Series: 3C

  • Operating Principle: Retro-reflective principle with polarization filter

  • Operating Range: 0.05 – 5 m (with reflector TK(S) 100×100)

  • Light Source: Laser, Red (Class 1)

  • Switching Output: 1 x Push-pull, light/dark switching

  • Supply Voltage: 10 – 30 V DC

  • Connection: M8 connector, 3-pin

  • Degree of Protection: IP 67, IP 69K

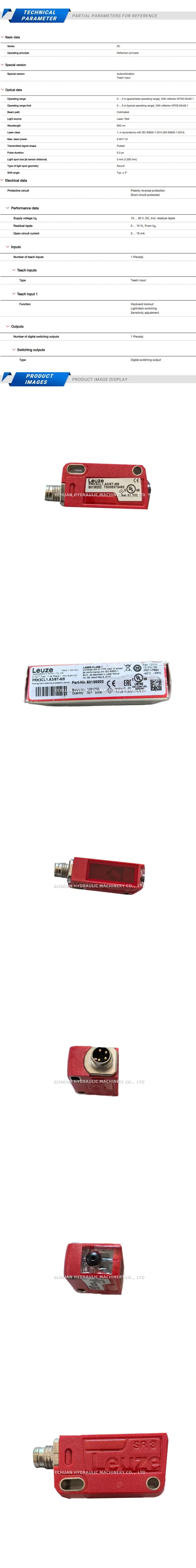

Leuze PRK3CL.1A3/6T-M8 Description

Leuze PRK3CL.1A3/6T-M8

Buy the Leuze PRK3CL.1A3/6T-M8, a compact laser retro-reflective photoelectric sensor with a 5m range, polarization filter, and M8 connector. Ideal for precise object detection in industrial automation.

BrandLeuze
ModelPRK3CL.1A3/6T-M8
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/leuze-prk3cl-1a3-6t-m8
