Product Description
Maxitrol HF2000
The Maxitrol HF2000 is a high-capacity, high-flow gas filter engineered for commercial and industrial applications. It is designed to effectively remove solid contaminants such as dirt, dust, and scale from the gas stream, providing crucial protection for downstream gas regulators, meters, and burners. Featuring a robust aluminum housing and a large filter element area, the HF2000 ensures minimal pressure drop while maintaining optimal filtration efficiency. This filter is an essential component for maintaining the reliability and longevity of any gas-fired system.

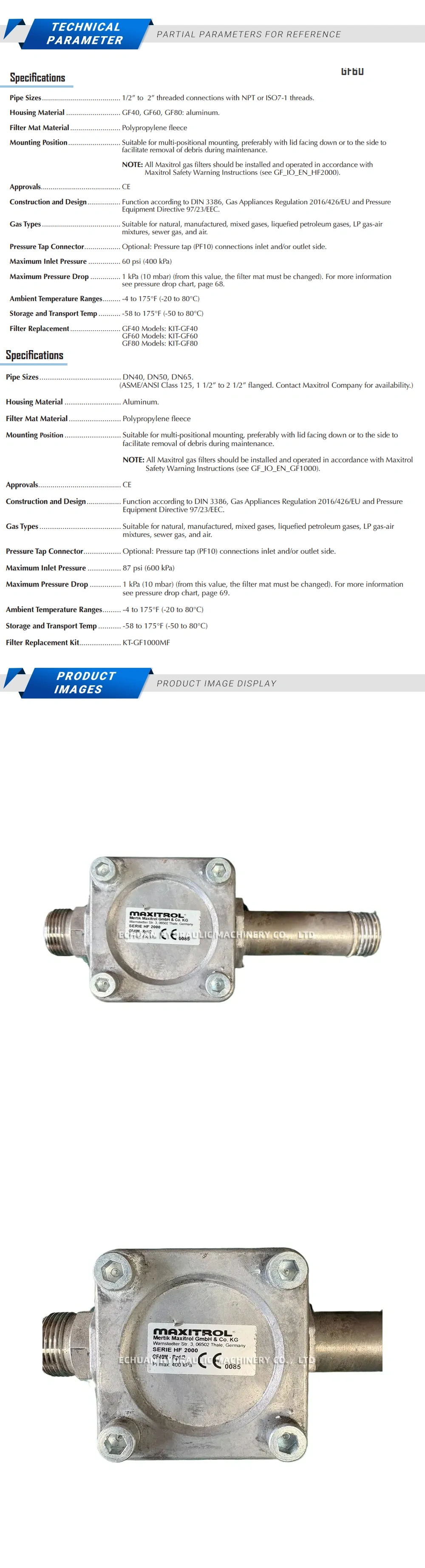

Technical Specifications:
- Pipe Sizes: 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″ NPT & Rp ISO 7-1
- Housing Material: Aluminum
- Maximum Inlet Pressure: 2 psi (13.8 kPa)
- Filter Element: Polyester fiber media (standard 50 micron)
- Ambient/Operating Temperature Range: -40°F to 205°F (-40°C to 96°C)
- Certifications: ANSI Z21.18/CSA 6.3 Certified

Maxitrol HF2000
Discover the Maxitrol HF2000 high-flow gas filter, designed for 2 psi systems. This durable aluminum filter protects gas regulators and burners by removing contaminants. Ideal for commercial and industrial gas lines.
