Product Description

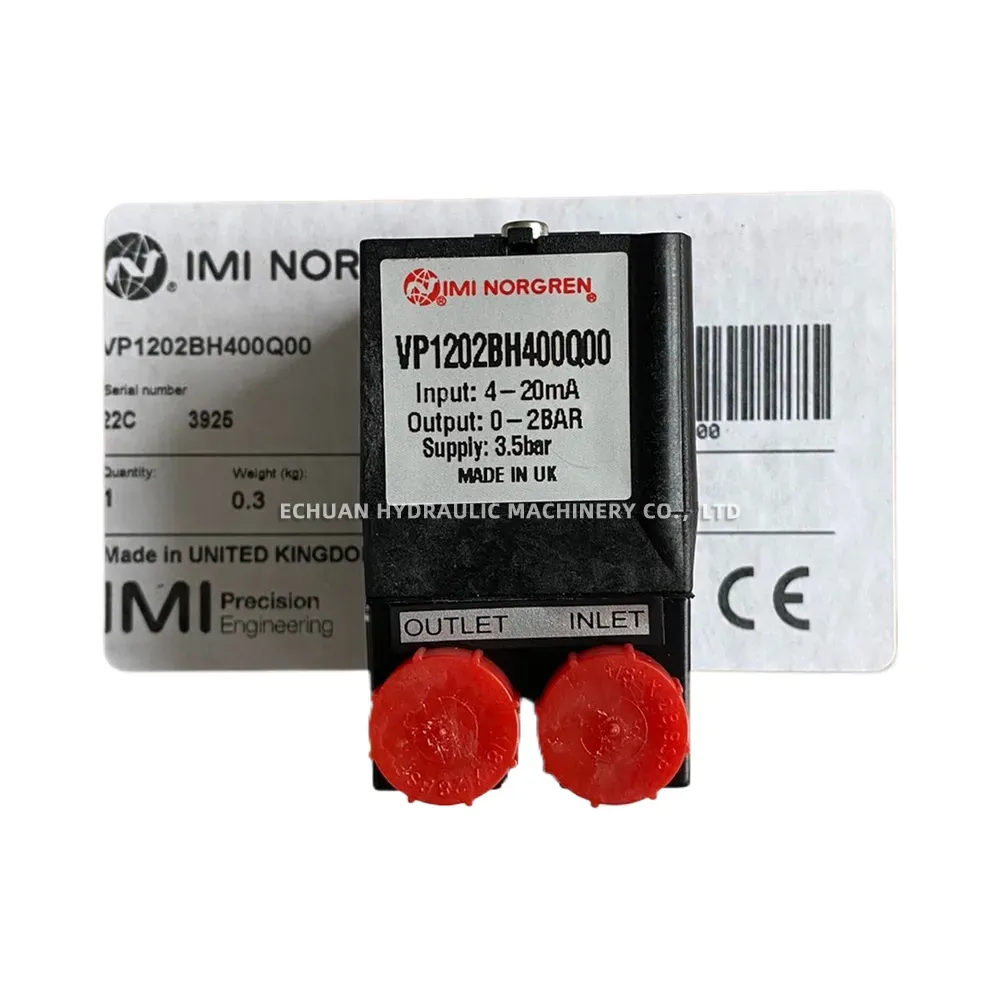

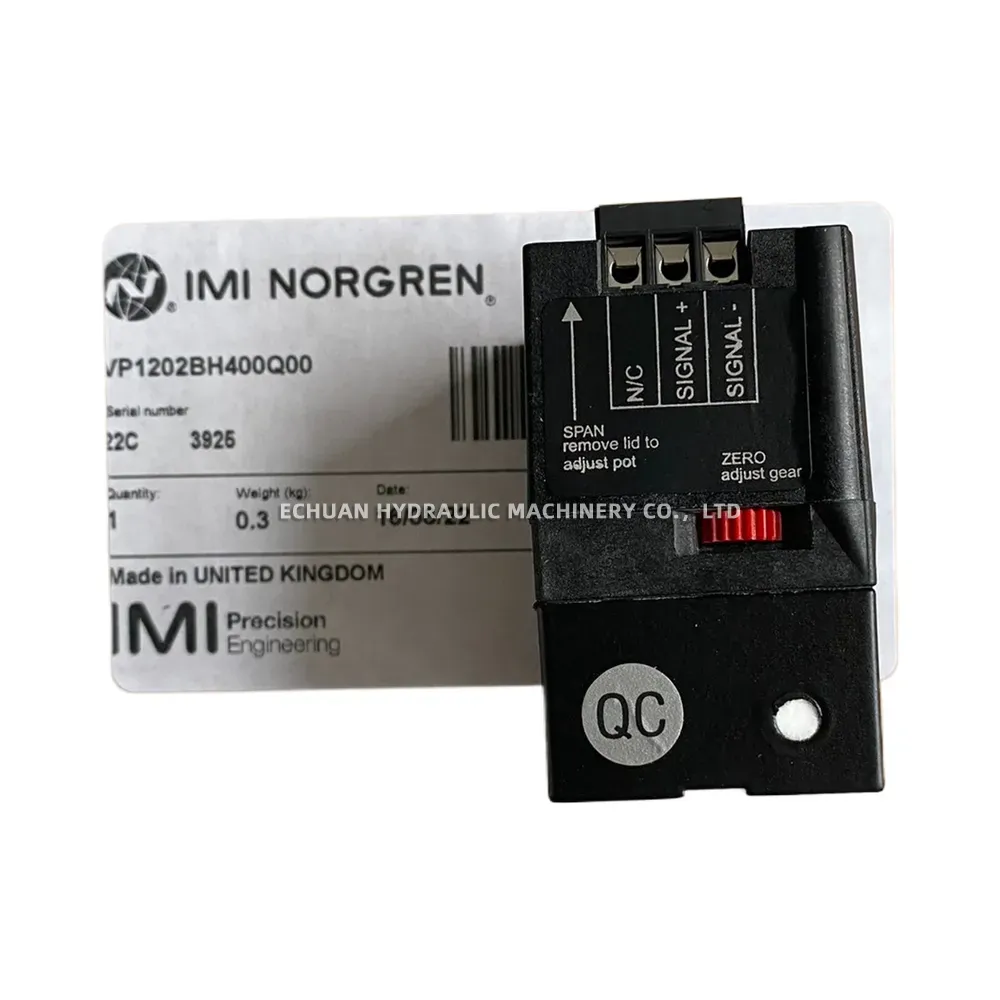

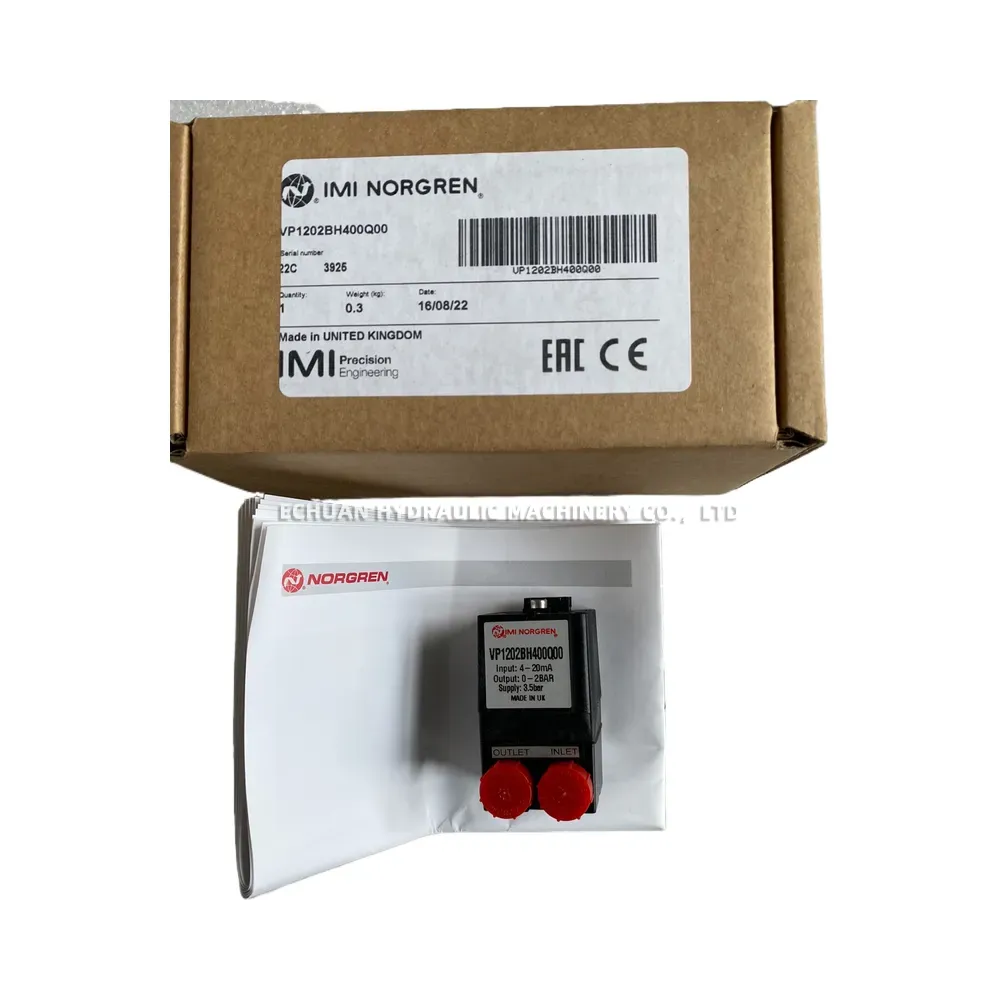

NORGREN VP1202BH400Q00 Proportional Pressure Control Valve
The NORGREN VP1202BH400Q00 is a high-performance proportional pressure control valve from the VP12 series. It is designed to precisely regulate the output pressure of compressed air in direct proportion to an electrical control signal (0-10V). This normally closed valve offers excellent repeatability and accuracy, making it suitable for sophisticated automation tasks requiring dynamic pressure adjustment. Its compact design and standard G1/4 porting allow for easy integration into various pneumatic systems.
Technical Specifications:
- Series: VP12
- Type: Proportional Pressure Control Valve
- Function: 3/2 Normally Closed (NC)
- Port Size: G1/4
- Control Signal Input: 0 – 10 V DC
- Output Pressure Range: 0 – 10 bar (0 – 145 psi)
- Supply Voltage: 24 V DC +/- 10%
- Medium: Filtered compressed air (5µm), lubricated or non-lubricated

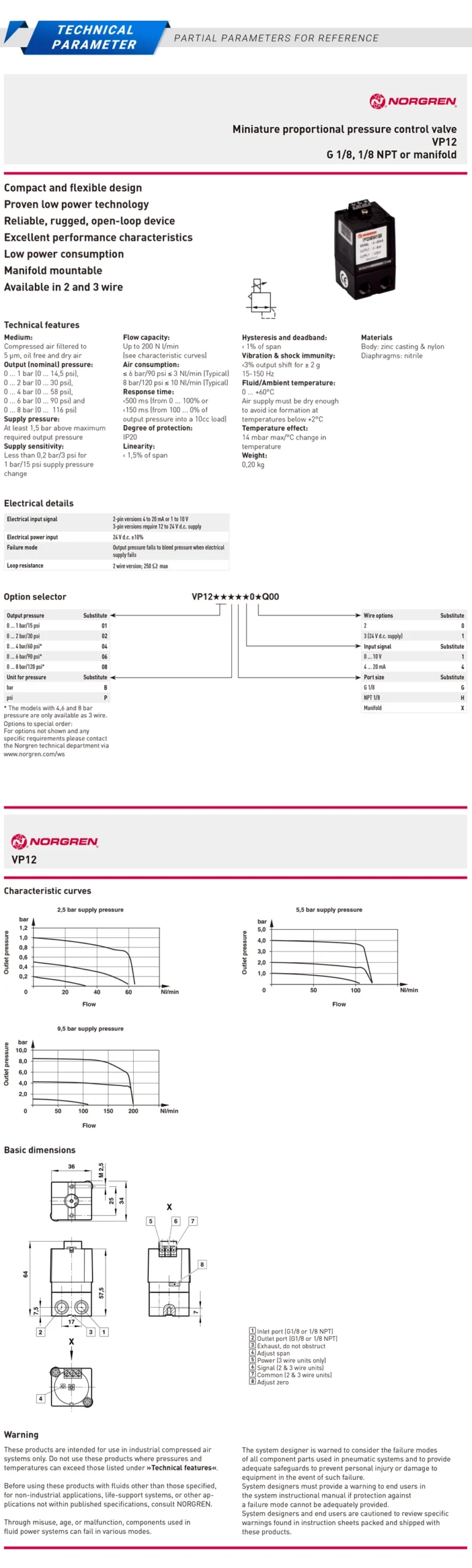

- Flow Rate: Dependent on inlet/outlet pressure (refer to datasheet curves)
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Electrical Connection: M12, 5-pin Connector
- IP Rating: IP65 (with appropriate mating connector correctly installed)
- Repeatability: < 0.5% Full Scale
- Linearity: < 1% Full Scale
NORGREN VP1202BH400Q00
Model:NORGREN VP1202BH400Q00
