Product Description

Norgren V61B513A-A2 B1293

The Norgren V61B513A-A2 B1293 is a robust 3/2 way normally closed solenoid spool valve from the V60/V62 inline series, engineered for reliable performance in industrial pneumatic systems. It features G1/4 ports, an aluminium body, and is solenoid pilot actuated with an internal pilot supply and spring return. This valve is equipped with a 24V DC solenoid (A2 type) that includes an M12 connector, LED indicator, and electrical suppression, facilitating easy integration and diagnostics. A manual override pushbutton allows for convenient testing and manual operation. Designed for use with compressed air, it is suitable for a variety of control applications requiring dependable switching.

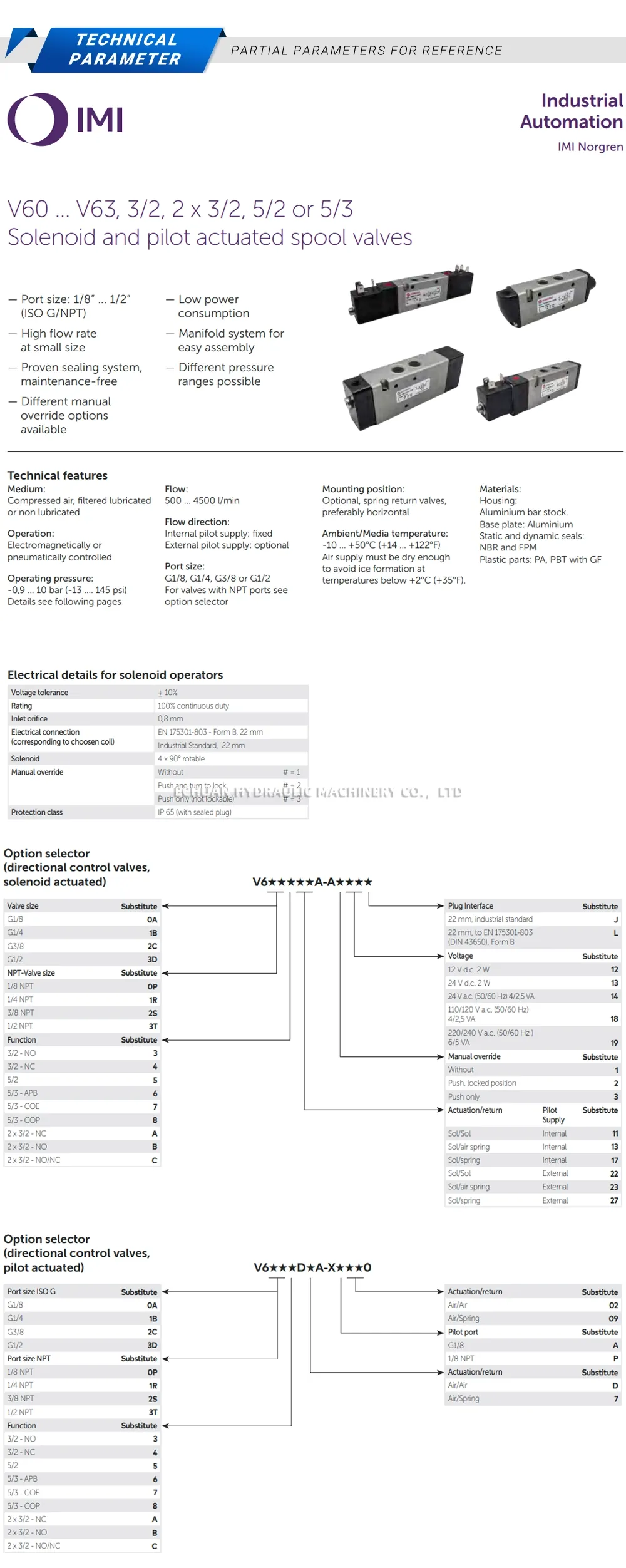

Technical Specifications:

Manufacturer: Norgren
Part Number: V61B513A-A2 B1293
Valve Type: Solenoid Spool Valve (Glandless design)
Series: V61 (Part of V60-V63 Inline Valve Range)
Function: 3/2 Normally Closed (NC)
Port Size: G1/4
Actuation: Solenoid pilot operated (internal pilot supply), spring return
Operating Pressure Range: 2 to 10 bar (29 to 145 psi) for internal pilot
Flow Rate (Qn at 6 bar, ΔP=1 bar): Approximately 860 l/min
Cv Factor: Approximately 0.86
Body Material: Aluminium
Spool & Sleeve Material: Stainless steel
Seal Material: NBR (Nitrile)
Solenoid Voltage: 24V DC
Solenoid Power Consumption: 2W (typical for A2 type)
Electrical Connection: M12 Connector (typically 4-pin, A-coded)
Solenoid Features: LED indicator, electrical suppression (e.g., varistor)
Manual Override: Pushbutton, non-locking
Operating Temperature Range: -10°C to +50°C (14°F to 122°F) (with standard solenoid)
Fluid Medium: Compressed air, filtered to 40µm, lubricated or non-lubricated
IP Rating: IP65 (with M12 connector correctly fitted)
