Product Description

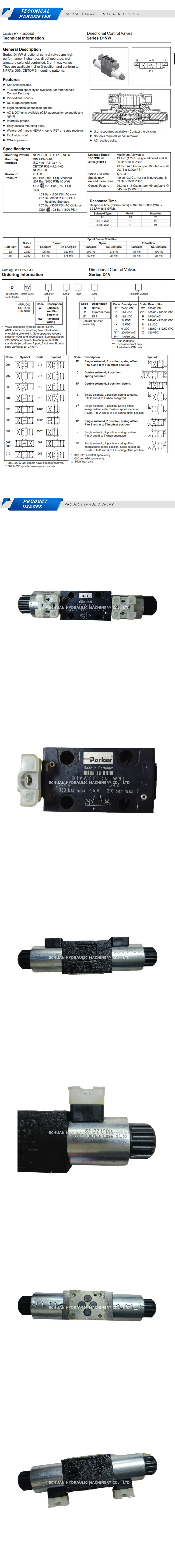

Parker D1VW001CNJW91 Directional Control Valve
The Parker D1VW001CNJW91 is a high-performance, direct-operated, 4-way, 3-position solenoid directional control valve. Part of the renowned D1VW series, this valve is designed for reliability and long service life in demanding industrial hydraulic applications. It features a CETOP 03 (NG6) mounting interface for easy integration into standard hydraulic systems. The “001” spool configuration ensures all ports are blocked in the center, spring-centered position, providing a secure neutral state. Equipped with a 24V DC solenoid and a terminal box with an indicator light, this valve offers precise control and clear operational feedback, making it a trusted choice for controlling the start, stop, and direction of fluid flow.
Technical Specifications:
- Valve Series: D1VW
- Mounting Interface: NG6 / CETOP 03 / D03
- Maximum Operating Pressure: 350 bar (5075 PSI)
- Maximum Flow Rate: 80 L/min (21 GPM)
- Spool Type: 001 (3-position, spring-centered, all ports blocked)
- Actuation: Solenoid Operated
- Solenoid Voltage: 24V DC
- Electrical Connection: Terminal Box with Indicator Light (Code J)
Parker D1VW001CNJW91
Buy the Parker D1VW001CNJW91, a reliable NG6 (CETOP 03) solenoid-operated directional control valve with a 24V DC coil and all-ports-blocked center position. Ideal for industrial hydraulic systems requiring precise flow control.
