Product Description

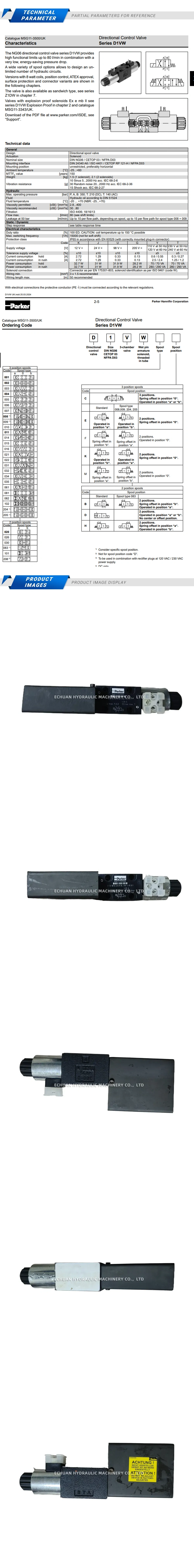

PARKER D1VW026HNJWI4N91
The Parker D1VW026HNJWI4N91 is a high-performance, direct-operated directional control valve designed for industrial hydraulic systems. As part of the D1VW series, this valve features a standard NG6 (CETOP 03 / D03) mounting interface for easy integration. It is solenoid-actuated, providing precise and reliable control over fluid direction. The robust construction ensures a long service life and consistent performance under demanding operating pressures. This model includes 90 VDC coils with DIN connectors, indicator lights, and a manual override feature, making it a versatile and user-friendly solution for a wide range of applications.
Technical Specifications:
- Valve Series: D1VW
- Mounting Interface: NG6 / CETOP 03 / D03
- Actuation Type: Solenoid, Direct Operated
- Spool Configuration: 026H (4-Way, 3-Position, Tandem Center P-T, A+B Blocked)
- Solenoid Voltage: 90 VDC
- Electrical Connection: DIN 43650 with indicator light and surge suppressor
- Maximum Operating Pressure: 350 bar (5075 PSI)
- Maximum Flow Rate: 80 l/min (21 GPM)
PARKER D1VW026HNJWI4N91
Shop the PARKER D1VW026HNJWI4N91, a reliable NG6 (D03) solenoid-operated hydraulic directional control valve. Features 90 VDC coils, a tandem center spool, and a 350 bar maximum pressure rating for industrial hydraulic applications.
| Brand | Parker |
|---|---|
| Model | D1VW026HNJWI4N91 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/parker-d1vw026hnjwi4n91 |
