Product Description

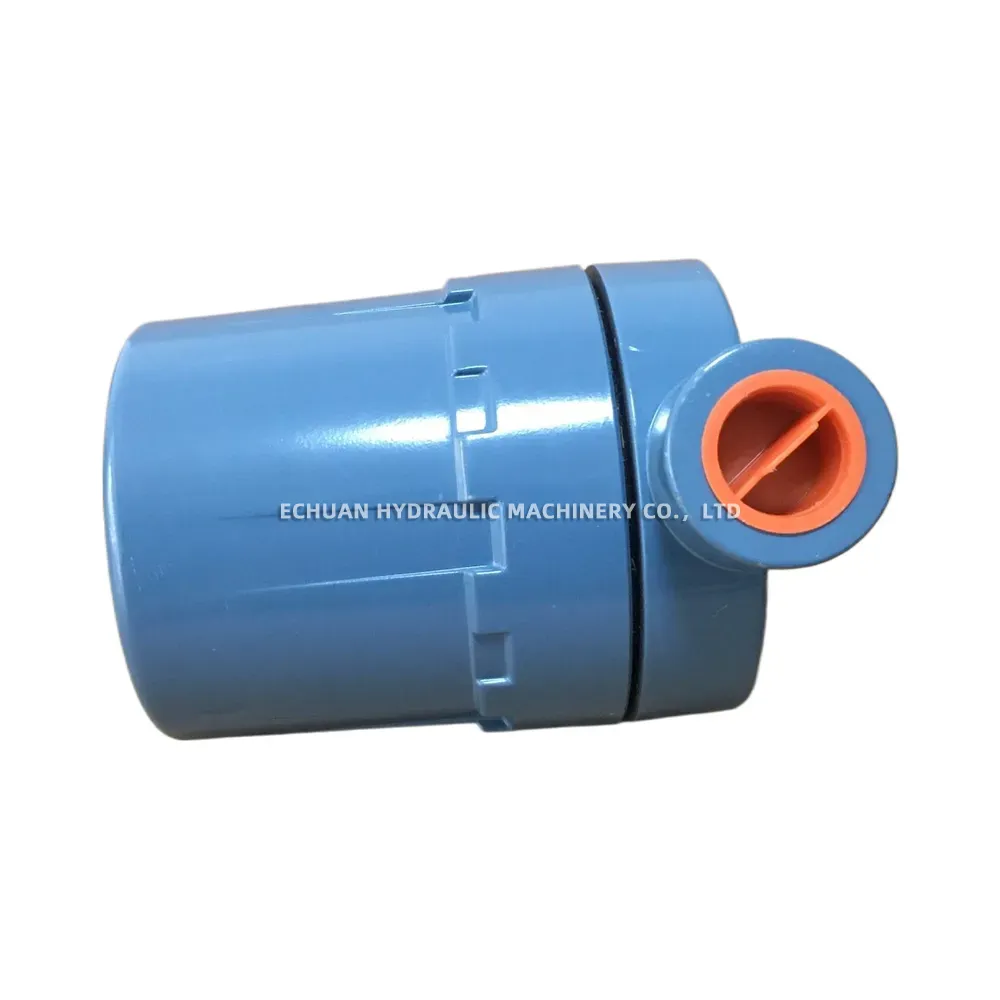

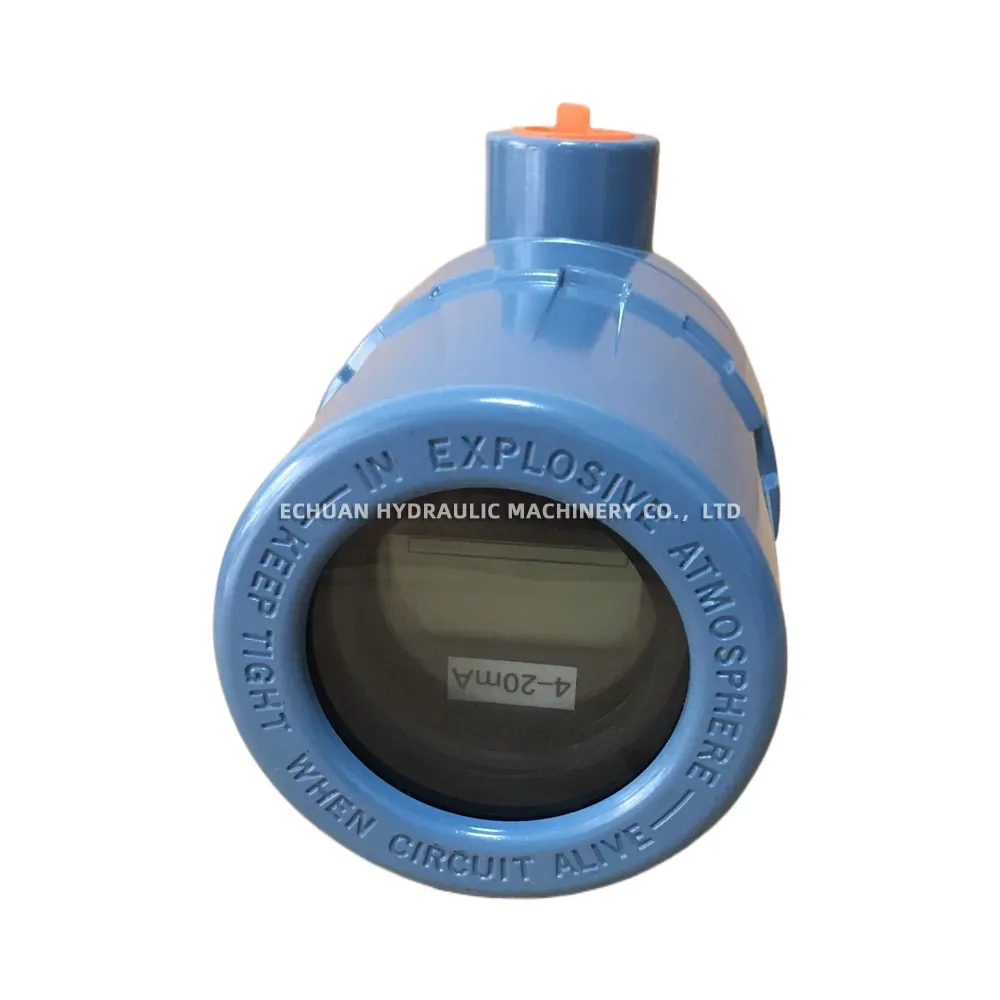

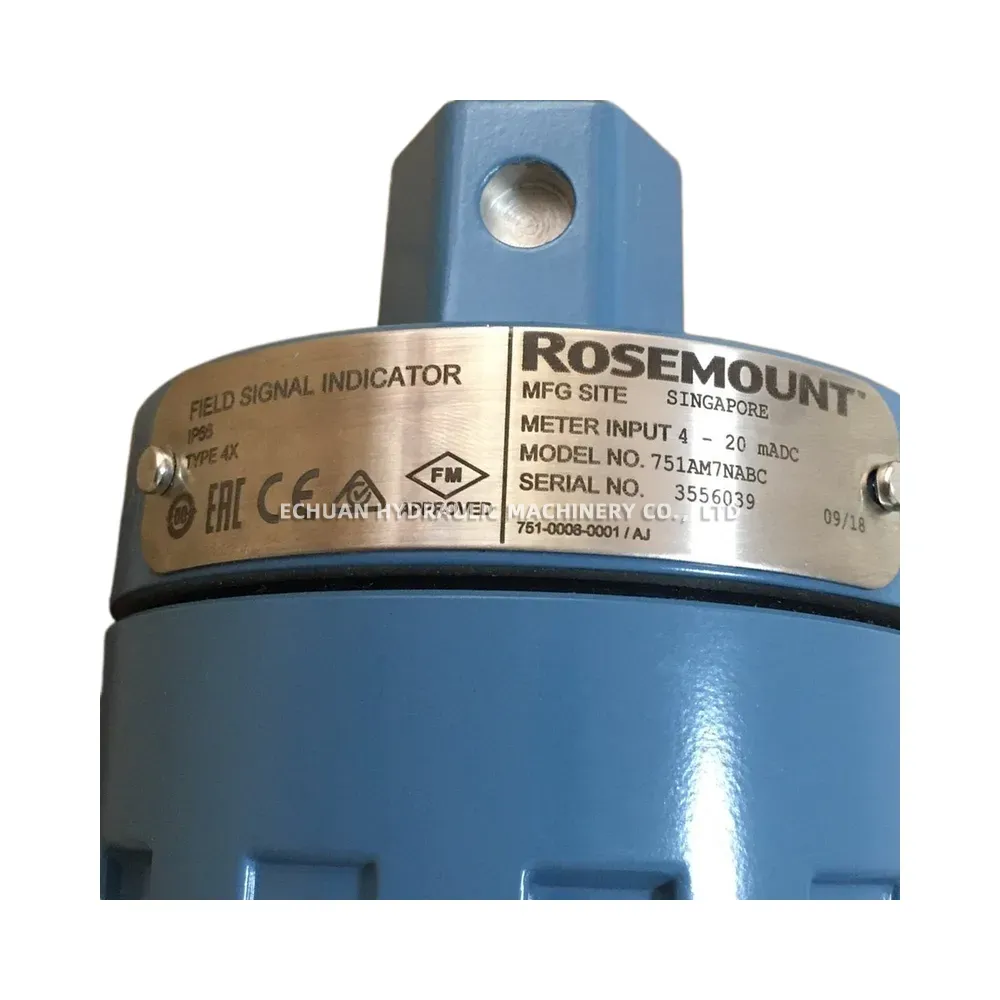

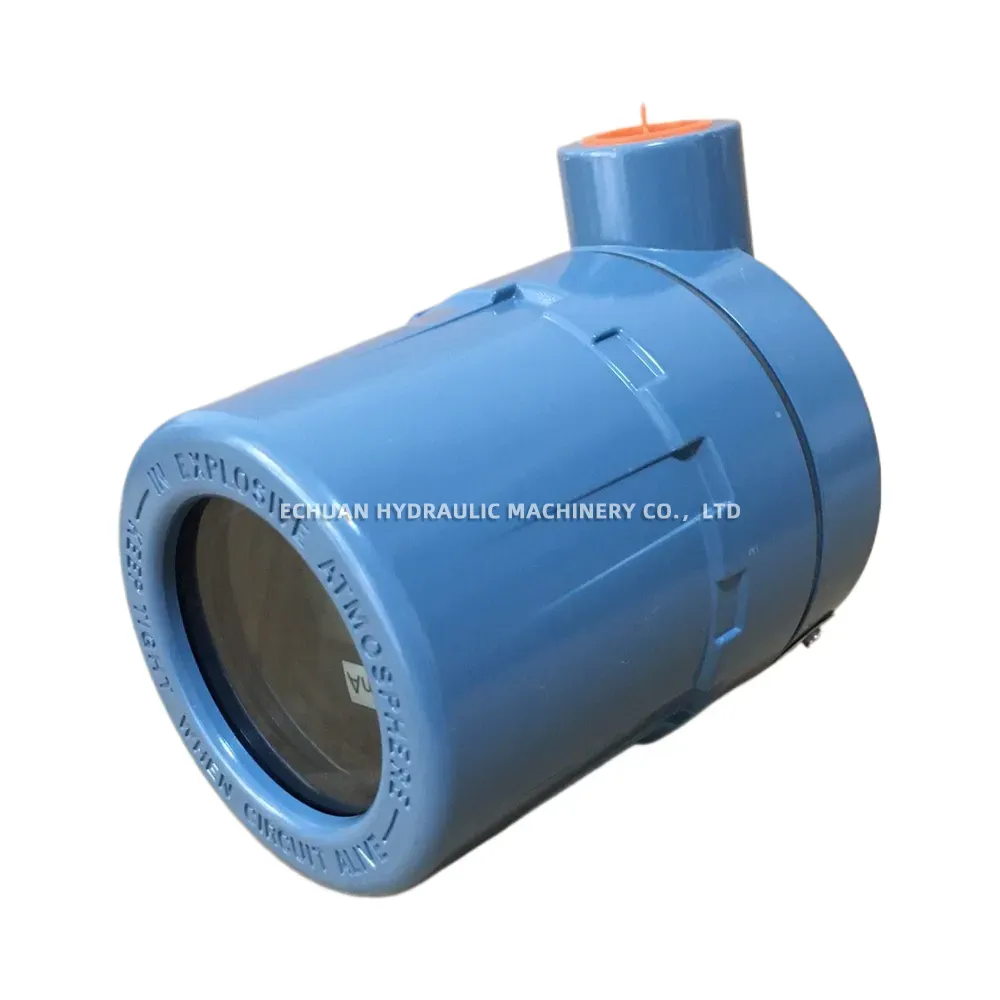

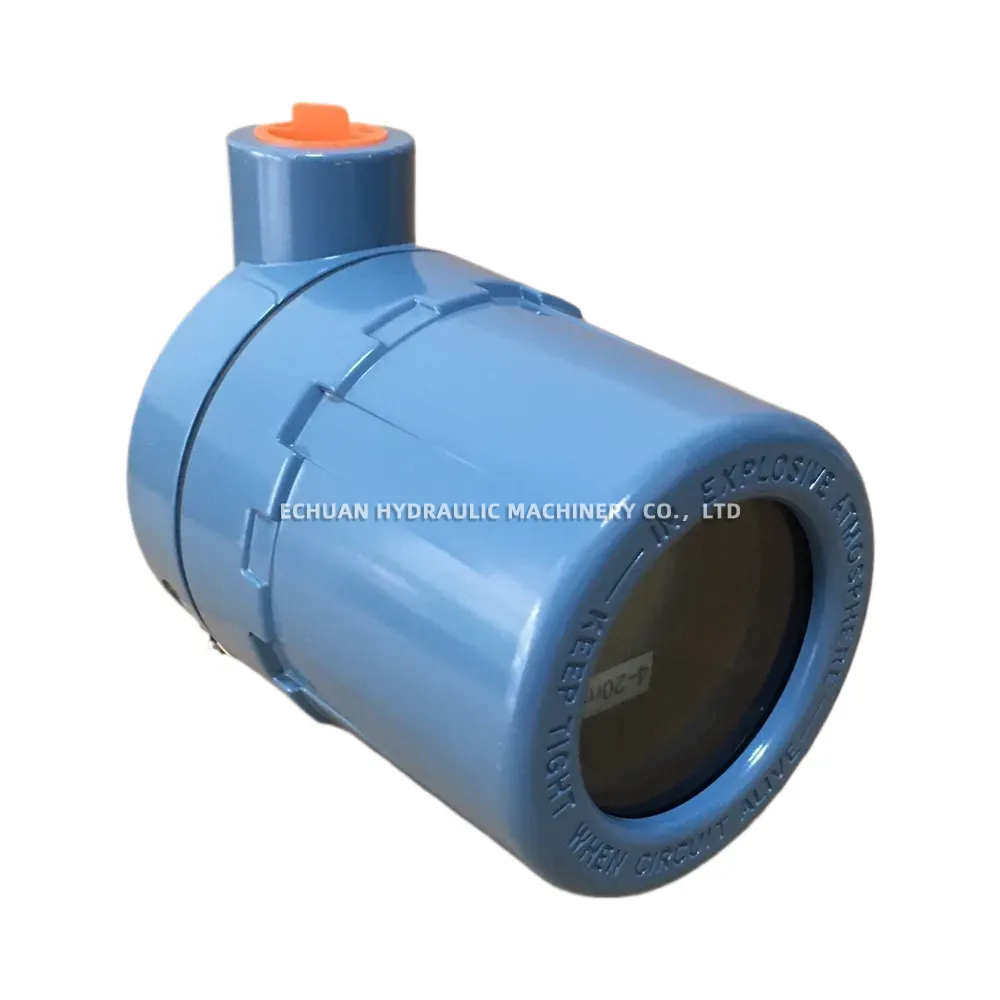

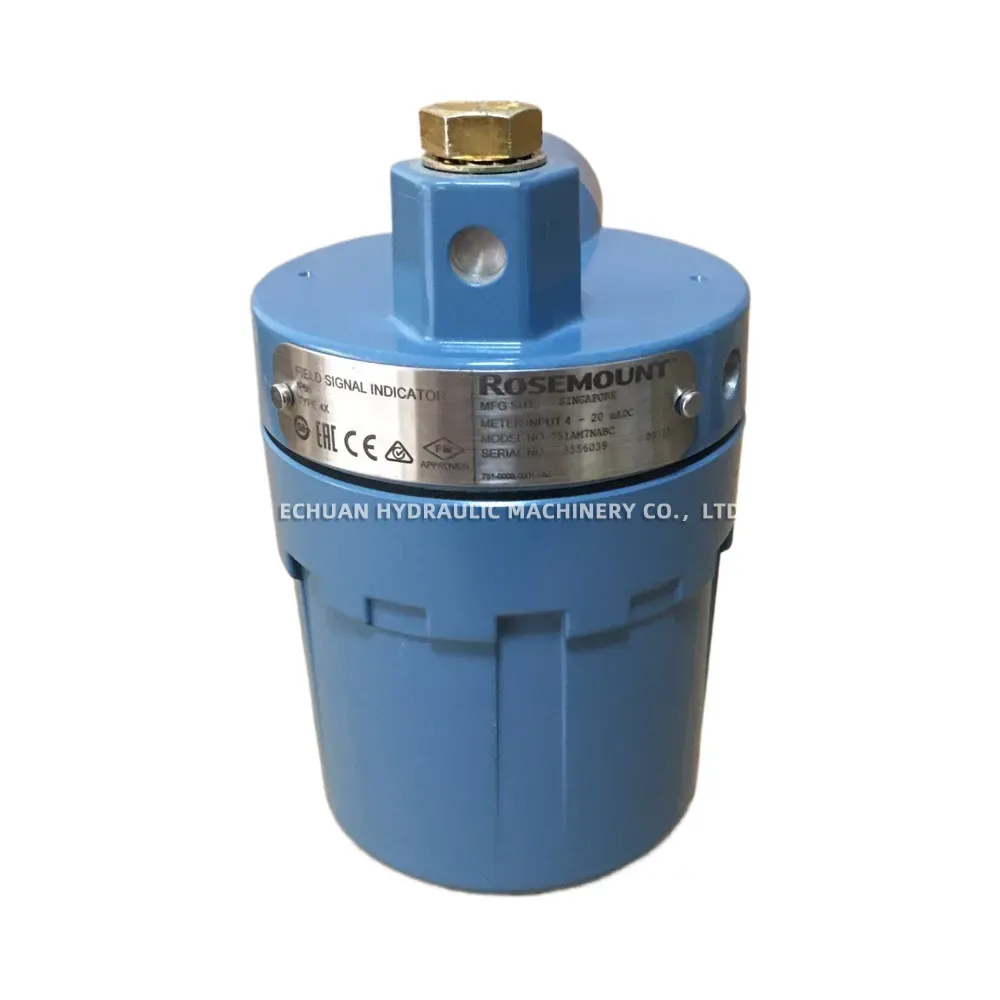

Rosemount 751AM7NABC Field Signal Indicator

The Rosemount 751AM7NABC Field Signal Indicator is a rugged and reliable device designed to provide a local, easy-to-read display of a 4-20 mA process variable. It connects directly in series with the 4-20 mA loop, requiring no separate power supply, which simplifies installation and reduces wiring costs. Housed in a durable, low-copper aluminum enclosure, this indicator is built to withstand harsh industrial environments. Its clear LCD meter, scaled from 0-100%, allows for quick and convenient on-site monitoring of pressure, flow, level, or temperature measurements, enhancing operational awareness and safety.

Technical Specifications:

  • Model: 751 Field Signal Indicator

  • Input Signal: 4-20 mA DC (two-wire loop powered)

  • Display: LCD Meter, scaled 0-100%

  • Housing Material: Low-copper aluminum

  • Conduit Entry: 1/2–14 NPT

  • Voltage Drop: 2.5 V maximum

Rosemount 751AM7NABC Description

Rosemount 751AM7NABC

The Rosemount 751AM7NABC is a loop-powered field signal indicator with a 0-100% LCD display, designed for local monitoring of any 4-20 mA process signal in a rugged aluminum housing.

BrandROSEMOUNT
Model751AM7NABC
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/rosemount-751am7nabc
