Product Description
Schneider BSH0702P11A1A
The Schneider Electric BSH0702P11A1A is a high-performance AC synchronous servo motor from the Lexium BSH series. Designed for demanding motion control applications, this motor offers exceptional dynamics, high torque density, and a compact form factor. Its 70mm frame size makes it suitable for integration into a wide range of machinery, including packaging, material handling, and robotics. Equipped with a single-turn SinCos Hiperface absolute encoder, the BSH0702P11A1A provides precise feedback for accurate positioning and speed control. This model features a keyed shaft for secure load coupling and is engineered for reliability and long service life when paired with Schneider Electric’s Lexium servo drives.

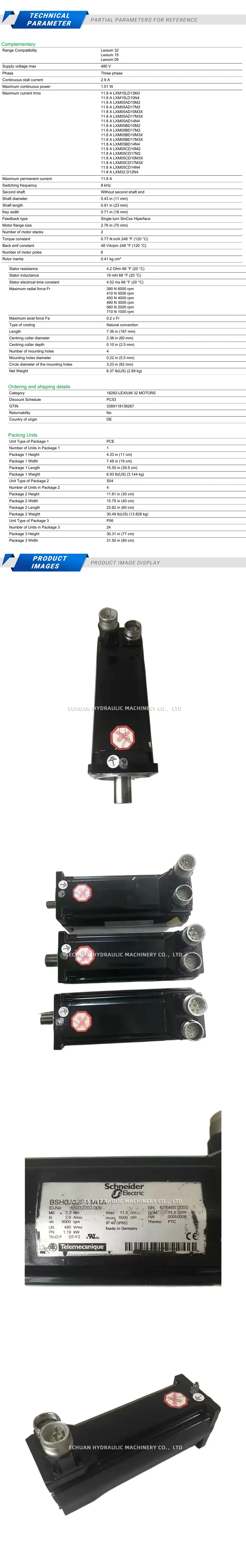

Technical Specifications:
- Product Series: Lexium BSH
- Motor Type: Synchronous AC Servo Motor
- Frame Size: 70 mm
- Nominal Torque: 1.7 N.m
- Nominal Speed: 6000 rpm
- Feedback Encoder: Single-turn SinCos Hiperface absolute encoder
- Shaft Type: Keyed shaft
- Brake Option: Without holding brake
- IP Rating: IP65 (housing) / IP54 (shaft end)
Schneider BSH0702P11A1A
Discover the Schneider BSH0702P11A1A, a compact 70mm AC servo motor delivering high torque and precision for advanced automation. Features a SinCos Hiperface encoder and keyed shaft for reliable performance.
