Product Description

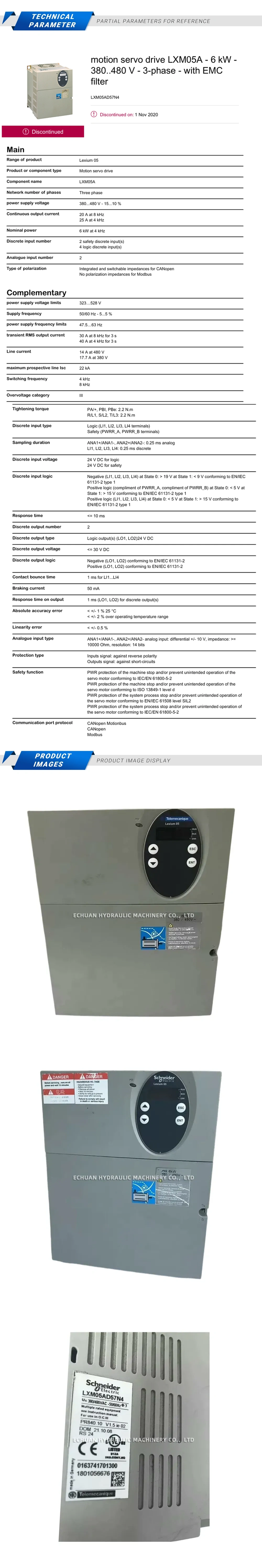

Schneider LXM05AD57N4
The Schneider Electric LXM05AD57N4 is a high-performance servo drive from the Lexium 05 series, engineered for demanding motion control applications. This compact and powerful drive is designed to control three-phase servo motors, offering exceptional precision and dynamic response. It operates on a 380…480 V three-phase supply voltage and delivers a nominal power of 8 kW. With integrated CANopen and CANmotion communication interfaces, it seamlessly integrates into complex automation systems. The built-in Safe Torque Off (STO) safety function enhances machine and operator safety. The LXM05AD57N4 is an ideal solution for applications in packaging, material handling, printing, and robotics that require precise speed and position control.
Technical Specifications:
- Product Series: Lexium 05
- Product Type: Servo drive
- Supply Voltage: 380…480 V AC (- 15…10 %) Three-phase
- Nominal Power: 8 kW at 400 V
- Continuous Output Current: 57 A at 4 kHz
- Communication Interface: Integrated CANopen, CANmotion
- Safety Function: STO (Safe Torque Off) SIL 2 conforming to EN/IEC 61508
- IP Degree of Protection: IP20
Schneider LXM05AD57N4
Discover the Schneider Electric LXM05AD57N4, an 8 kW, 400V Lexium 05 servo drive designed for high-performance motion control. Features integrated CANopen and Safe Torque Off (STO) for precise and safe automation.
