Product Description

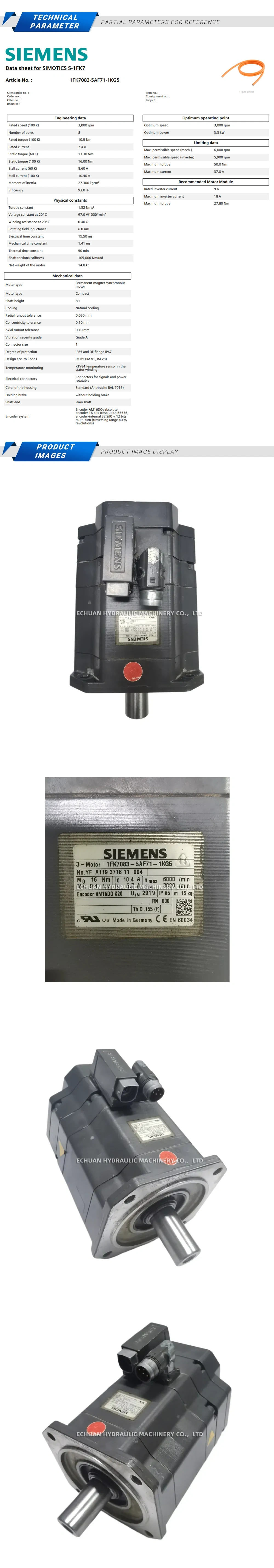

Siemens 1FK7083-5AF71-1KG5
The Siemens 1FK7083-5AF71-1KG5 is a high-performance SIMOTICS S synchronous servo motor designed for demanding motion control applications. As part of the 1FK7 Compact series, this motor is characterized by its high power density, compact design, and excellent dynamic response. It is engineered for precision, reliability, and efficiency, making it an ideal choice for use in machine tools, robotics, packaging machinery, and automated handling systems. This model includes a holding brake for safety and position-holding tasks, and a high-resolution absolute encoder for precise positioning feedback, all integrated into a rugged IP65-rated housing.
Technical Specifications:
- Motor Type: SIMOTICS S-1FK7 Synchronous Servo Motor, Compact
- Rated Speed (n_N): 3000 rpm
- Rated Torque (M_N): 10 Nm
- Rated Power (P_N): 3.14 kW
- Stall Torque (M0): 11 Nm
- Stall Current (I0): 7.6 A
- Encoder System: Absolute encoder 24-bit + 12-bit multi-turn (AM24DQI) with DRIVE-CLiQ interface
- Shaft Design: Plain shaft with holding brake
- Degree of Protection: IP65
- Shaft Height: 80 mm
Siemens 1FK7083-5AF71-1KG5
Shop the Siemens 1FK7083-5AF71-1KG5, a compact and dynamic SIMOTICS S synchronous servo motor with a 10 Nm rated torque, 3000 rpm rated speed, and integrated holding brake. Ideal for high-precision automation and motion control systems.
| Brand | SIEMENS |
|---|---|
| Model | 1FK7083-5AF71-1KG5 |
| Category | Servo motors |
