Product Description

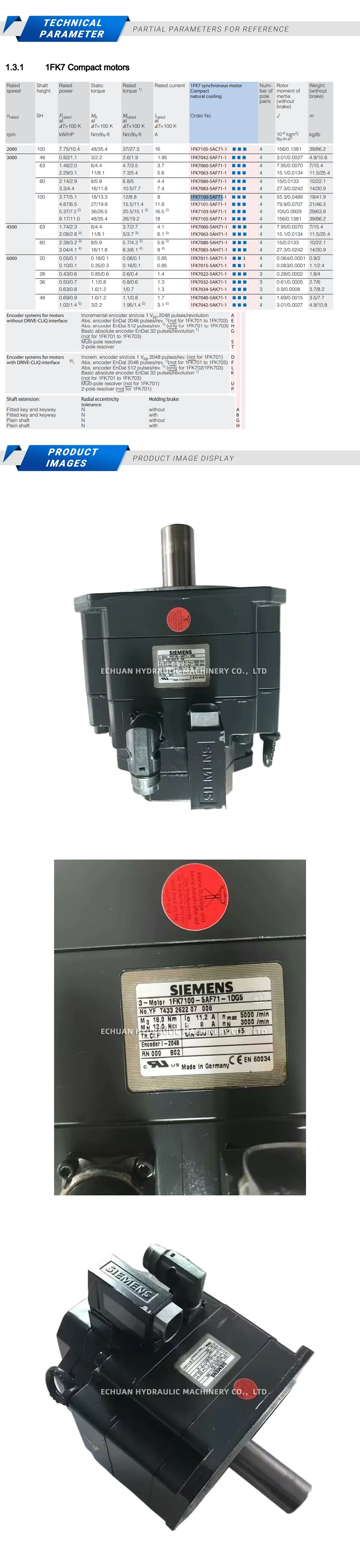

Siemens 1FK7100-5AF71-1DG5
The Siemens 1FK7100-5AF71-1DG5 is a high-performance synchronous servo motor from the SIMOTICS S-1FK7 series. Designed for demanding motion control applications, this compact (CT) motor offers exceptional torque density and dynamic response. It is engineered for precision and reliability, making it an ideal choice for use in machine tools, packaging machinery, robotics, and automated handling systems. Equipped with an absolute encoder, it ensures precise positioning and control. Its robust construction with an IP65 protection rating guarantees durability in various industrial environments.
Technical Specifications:
- Motor Type: SIMOTICS S-1FK7 Synchronous Servo Motor, Compact
- Rated Speed (n_n): 3000 rpm
- Rated Torque (M_n): 16 Nm
- Rated Power (P_n): 5.03 kW
- Stall Torque (M_0): 25 Nm
- Encoder System: Absolute encoder 24-bit + 12-bit multiturn with DRIVE-CLiQ interface (AM24DQI)
- Shaft Design: Shaft with fitted key, tolerance N
- Protection Class: IP65
Siemens 1FK7100-5AF71-1DG5
Discover the Siemens 1FK7100-5AF71-1DG5, a compact and powerful SIMOTICS S-1FK7 servo motor. It delivers 16 Nm of torque at 3000 rpm, featuring a high-resolution absolute encoder for superior precision in demanding automation and motion control tasks.
