Product Description

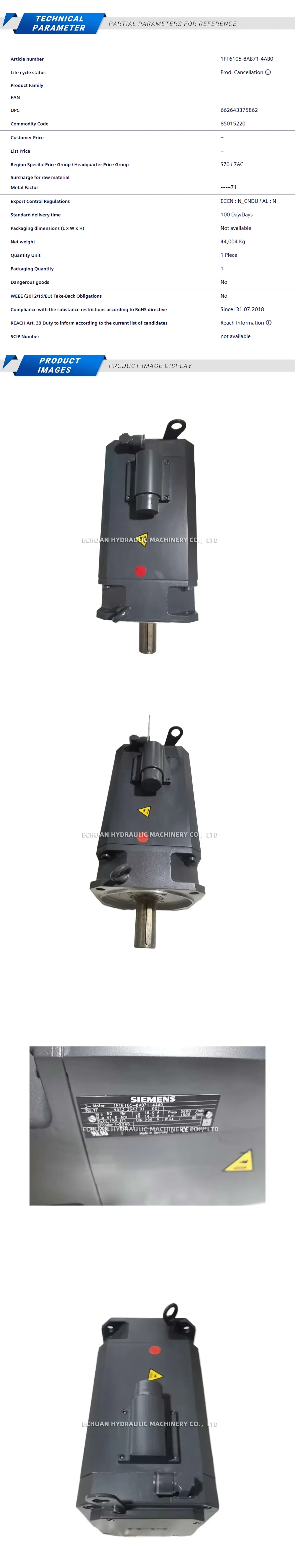

Siemens 1FT6105-8AB71-4AA0
The Siemens 1FT6105-8AB71-4AA0 is a high-performance synchronous servo motor from the SIMOTICS S-1FT6 series. Engineered for demanding motion control applications, this motor offers exceptional torque density, high dynamics, and precise positioning. Its compact and robust design, coupled with natural cooling, makes it an ideal solution for integration into machine tools, robotics, and automated production lines. The integrated absolute encoder with an EnDat interface provides accurate feedback for closed-loop control, ensuring reliability and operational excellence in complex tasks.
Technical Specifications:
- Motor Type: SIMOTICS S-1FT6 Synchronous Servo Motor
- Rated Speed (n_n): 2000 rpm
- Rated Torque (M_n): 35 Nm
- Static Torque (M_0): 48 Nm
- Rated Current (I_n): 26.0 A
- Encoder System: Absolute encoder 2048 S/R with EnDat interface (AM2048S/R)
- Cooling Method: Natural cooling
- Protection Class: IP65
- Shaft End: With feather key
- Connector Type: Rotatable connector
Siemens 1FT6105-8AB71-4AA0
Discover the Siemens 1FT6105-8AB71-4AA0, a compact and powerful SIMOTICS S synchronous servo motor. It delivers a rated torque of 35 Nm at 2000 rpm and features a high-resolution EnDat absolute encoder for precision motion control applications.
