Product Description

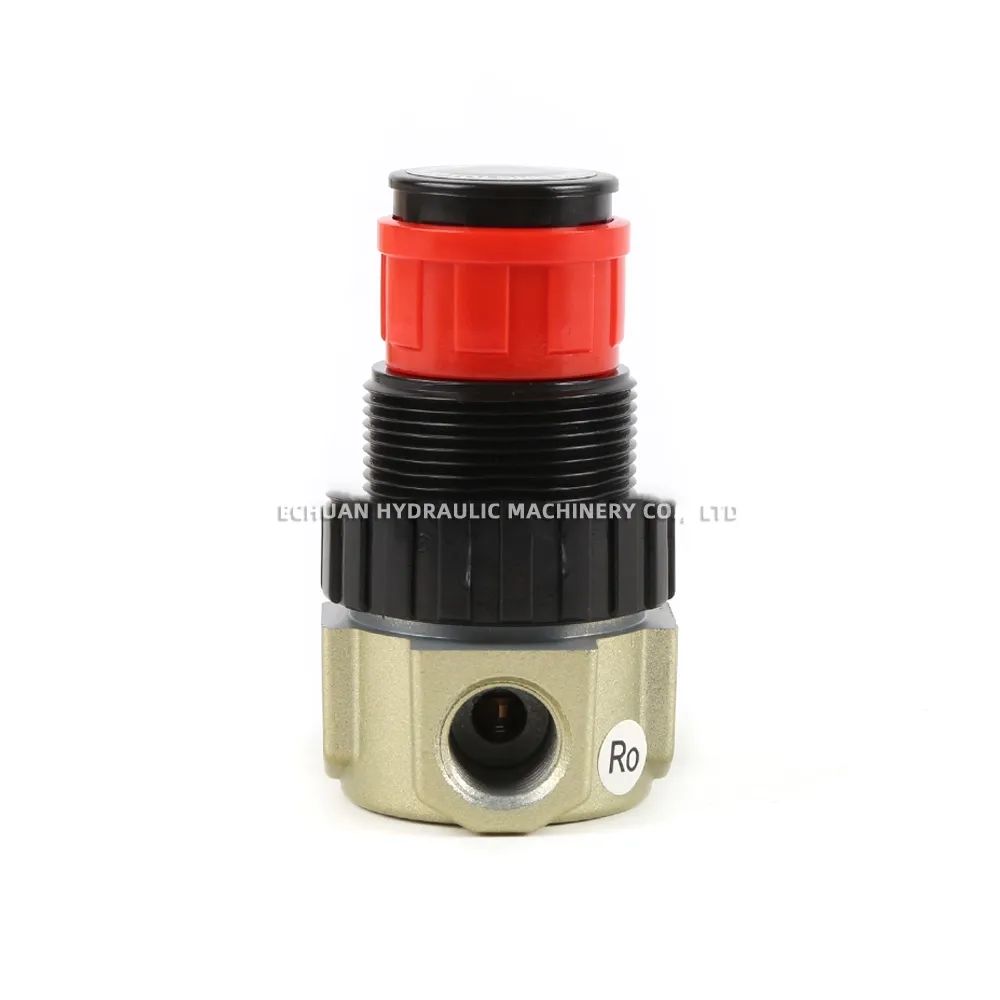

TACO AZBIL R31-200-0000 R31 Air Filter Regulator
The Azbil R31 series, including the R31-200-0000 model, is a compact and reliable air filter regulator designed for pneumatic systems. It combines an air filter and a pressure regulator into a single unit, saving space and simplifying installation. This device effectively removes contaminants like dust and water droplets from compressed air while providing precise and stable downstream pressure control, ensuring optimal performance and longevity of pneumatic equipment.
Technical Specifications:
- Model Series: R31
- Type: Filter Regulator
- Port Size: Rc(PT) 1/4
- Set Pressure Range: 0.02 to 0.8 MPa (approx. 3 to 116 psi)
- Maximum Supply Pressure: 1.0 MPa (approx. 145 psi)
- Filtration Rating: Standard 5 μm
- Ambient and Fluid Temperature: -5 to 60°C (no freezing)
- Bowl Material: Polycarbonate
- Drain Type: Manual Drain (Standard for -0000 suffix)
- Pressure Gauge Port Size: Rc(PT) 1/8 (Gauge typically optional)
- Construction: Modular type
TACO AZBIL R31-200-0000 R31
Model:TACO AZBIL R31-200-0000 R31
| Brand | TACO AZBIL |
|---|---|
| Model | R31-200-0000 R31 |
| Part No. | TACO AZBIL R31-200-0000 R31 |
| Category | Hydraulic valves |
