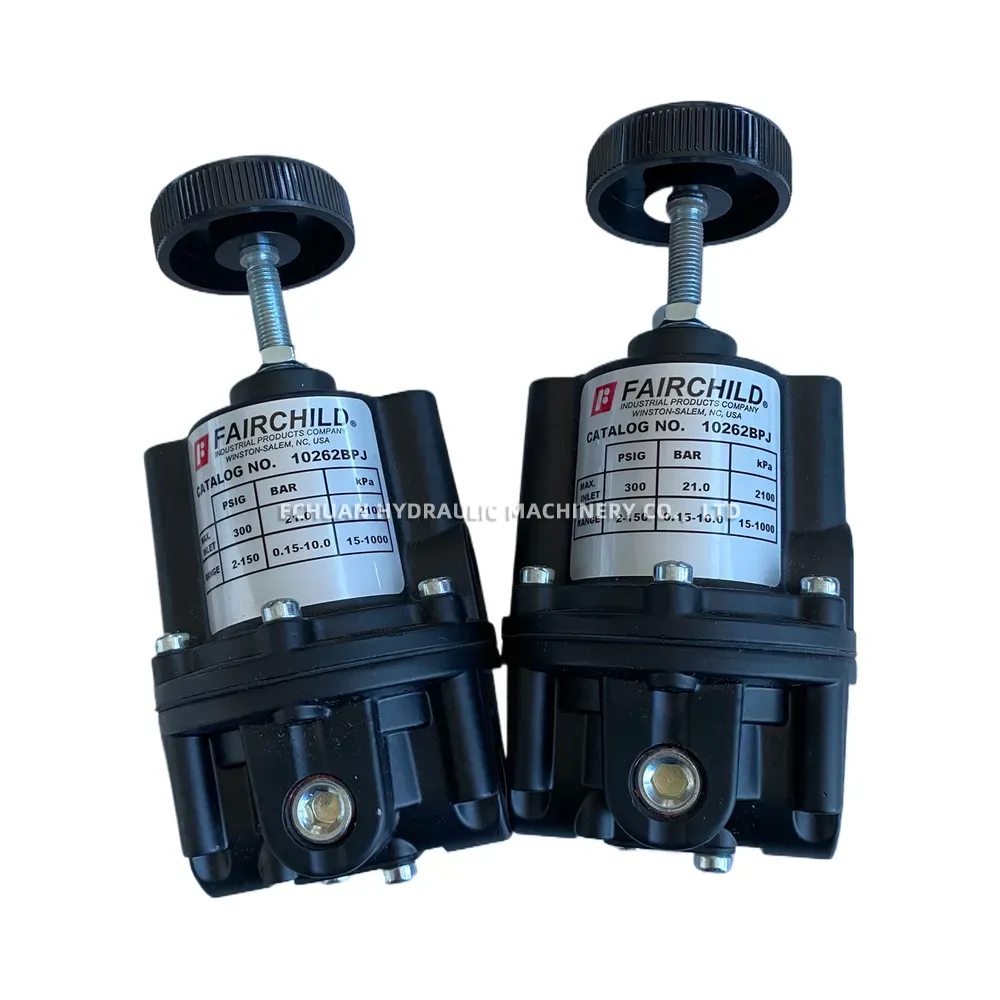

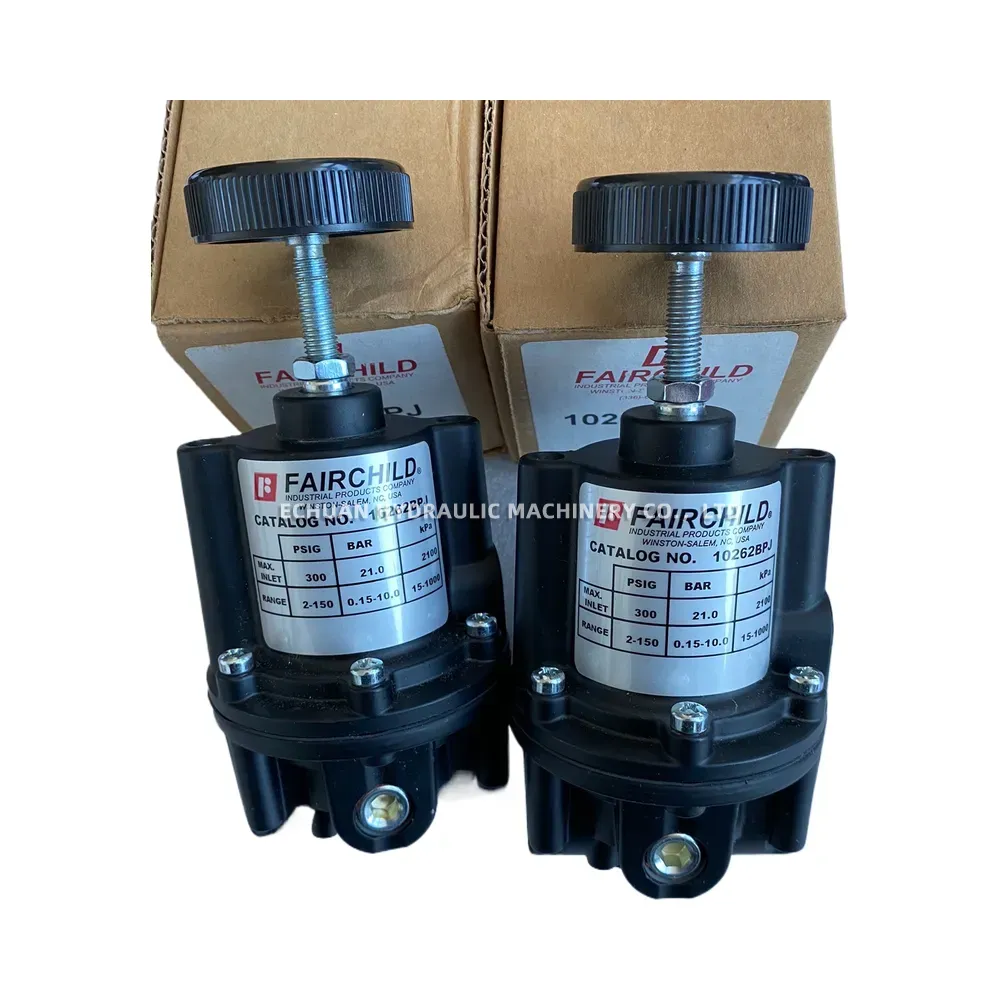

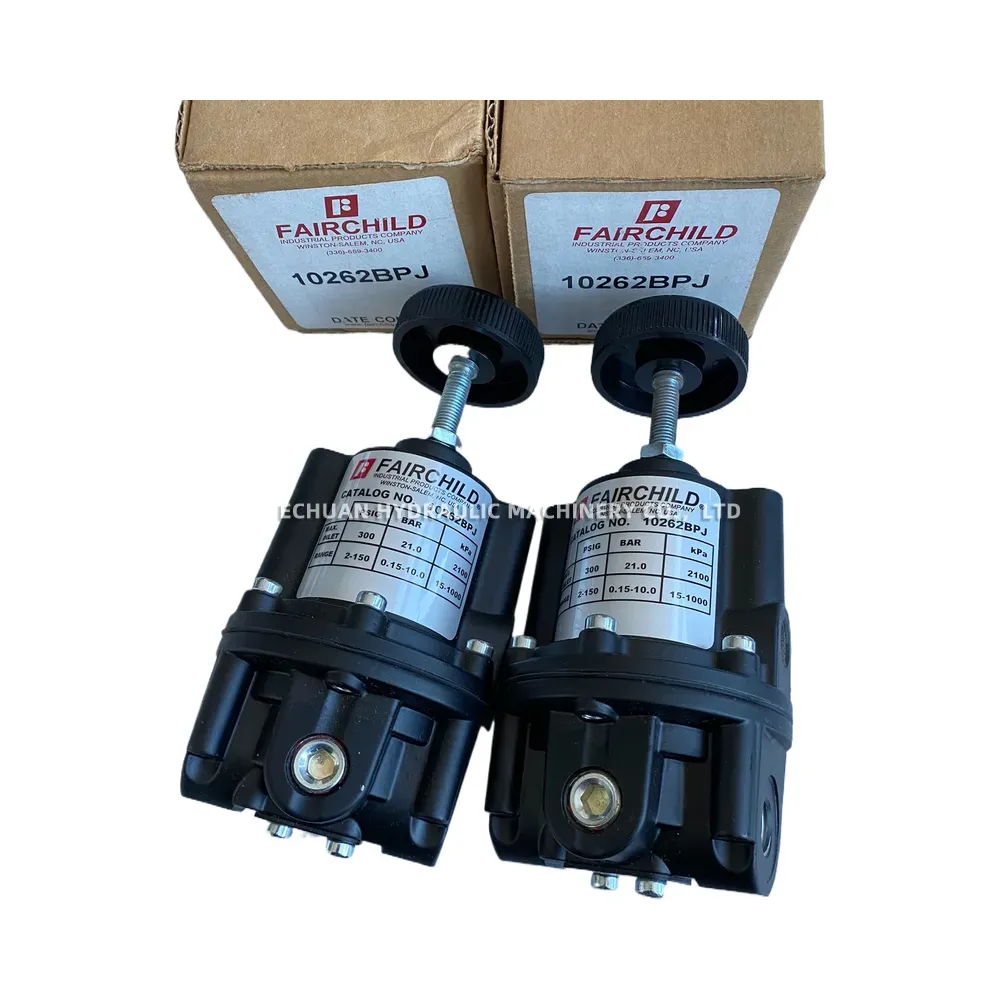

FAIRCHILD 10262BPJ Precision Back Pressure Regulator
The Fairchild Model 10262BPJ is a high-precision back pressure regulator designed for applications requiring accurate control of upstream pressure. It offers high flow capacity and excellent sensitivity, reacting to minute changes in system pressure to maintain the desired setpoint. This regulator provides reliable performance in demanding industrial environments, ensuring stable upstream pressure control by relieving excess pressure.
Technical Specifications:
- Type: Back Pressure Regulator
- Flow Capacity: Up to 40 SCFM (68 m³/hr) depending on pressure range
- Maximum Supply Pressure: Typically 500 psig (34.5 BAR)
- Control Pressure Range: 0-120 psig (0-8.3 BAR) – Note: Other ranges exist for the Model 10 series
- Sensitivity: 0.1″ (2.54 mm) Water Column
- Pipe Size: 1/4″ NPT
- Materials (Body): Aluminum
- Materials (Diaphragm/Trim): Typically Buna-N/Brass (check specific variant)
- Operating Temperature Range: -40°F to 200°F (-40°C to 93°C) (Standard Buna-N)
- Adjustment Mechanism: Screw Adjust
FAIRCHILD 10262BPJ
Model:FAIRCHILD 10262BPJ
| Brand | Fairchild |
|---|---|
| Model | 10262BPJ |
| Part No. | FAIRCHILD 10262BPJ |
| Category | Hydraulic valves |
