Product Description

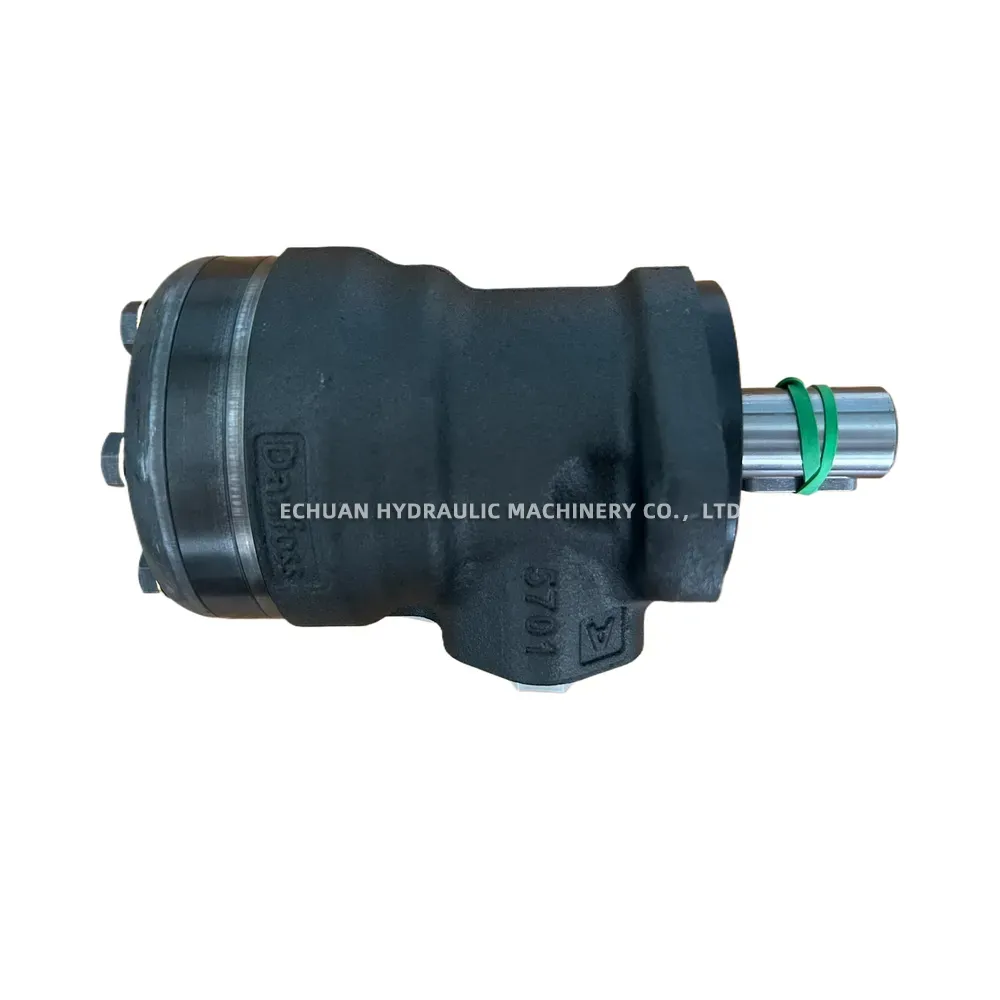

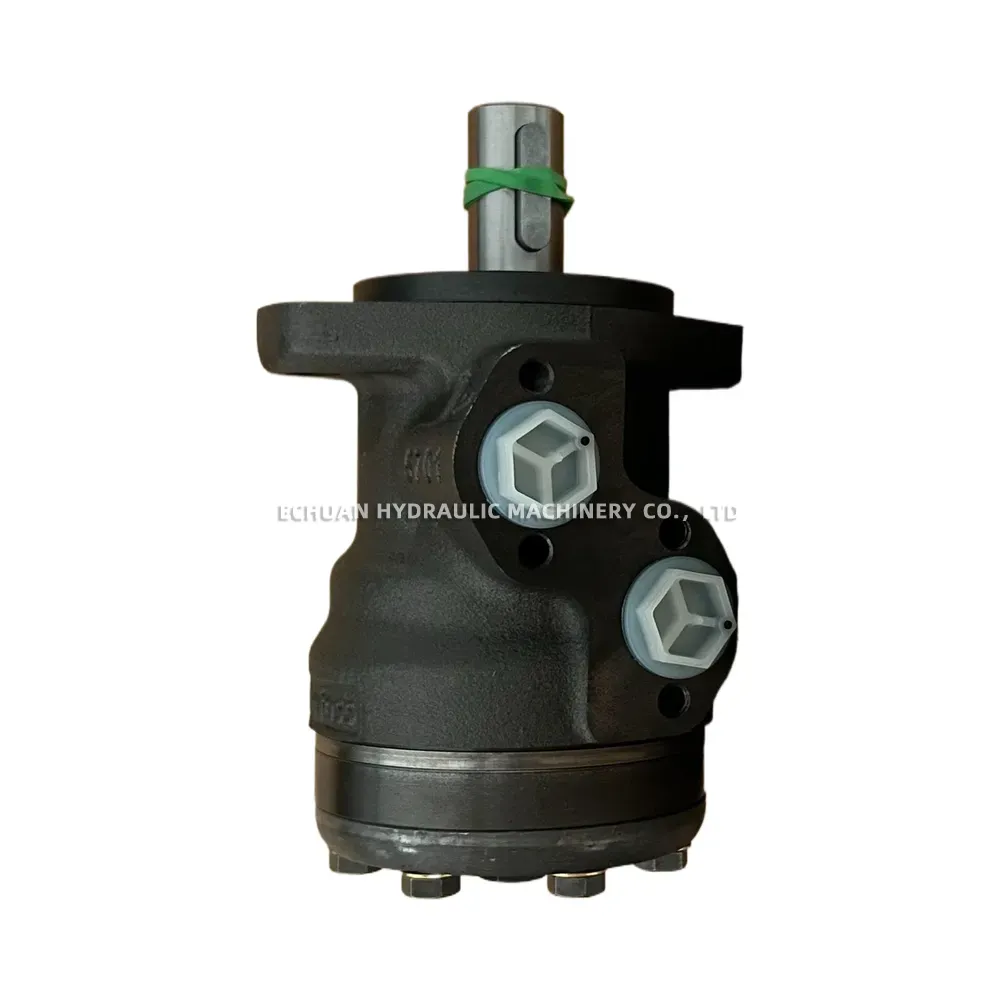

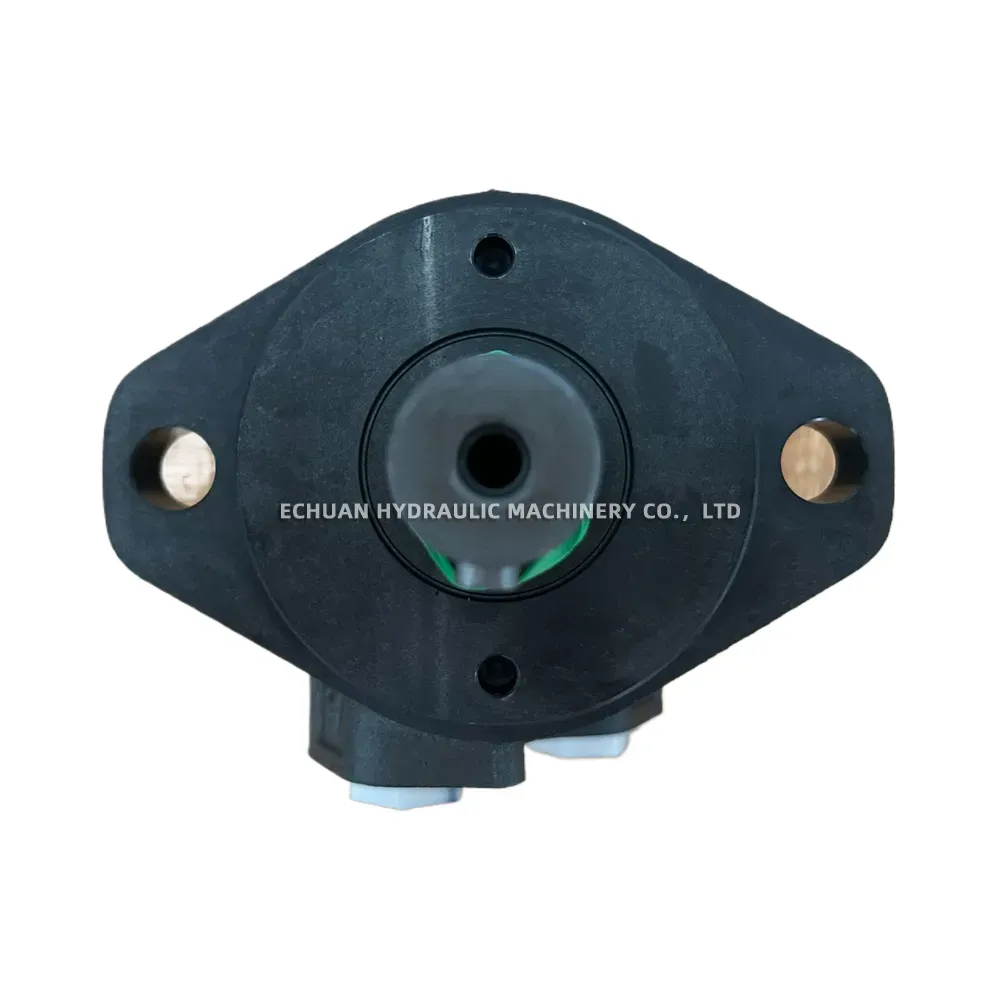

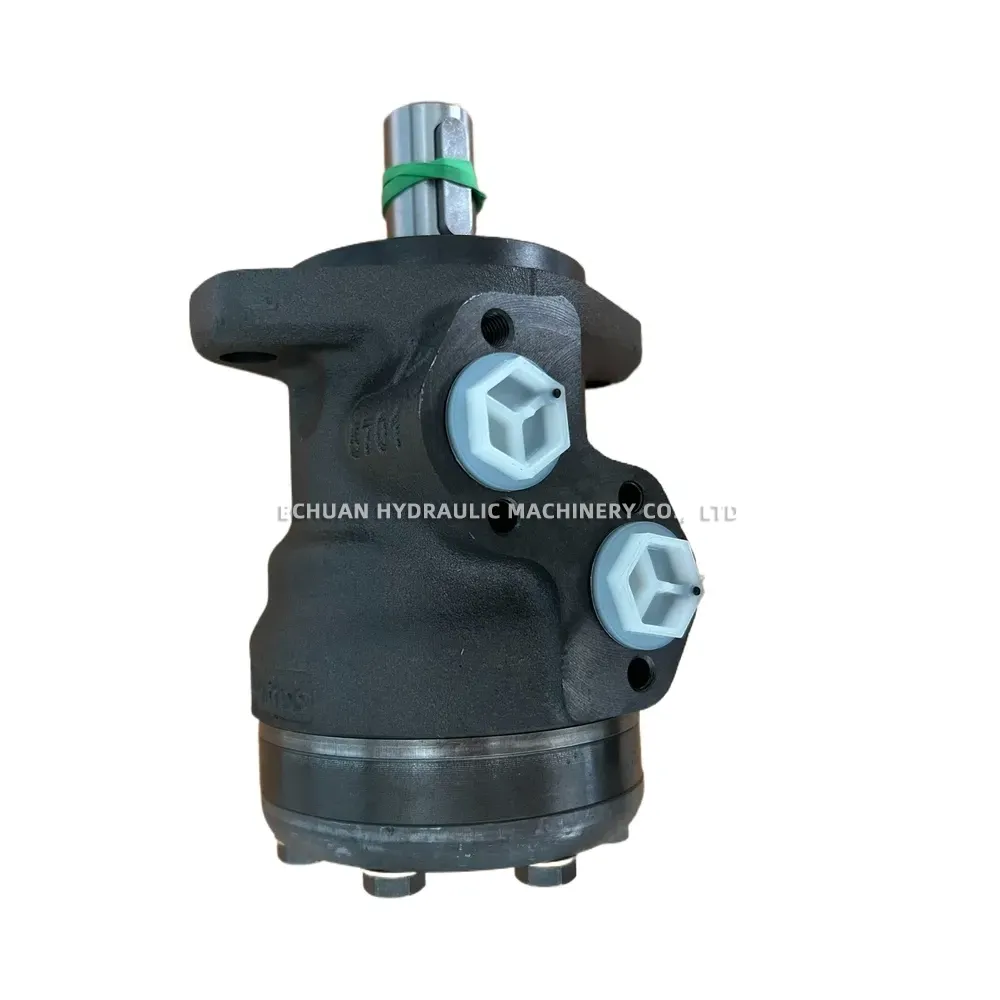

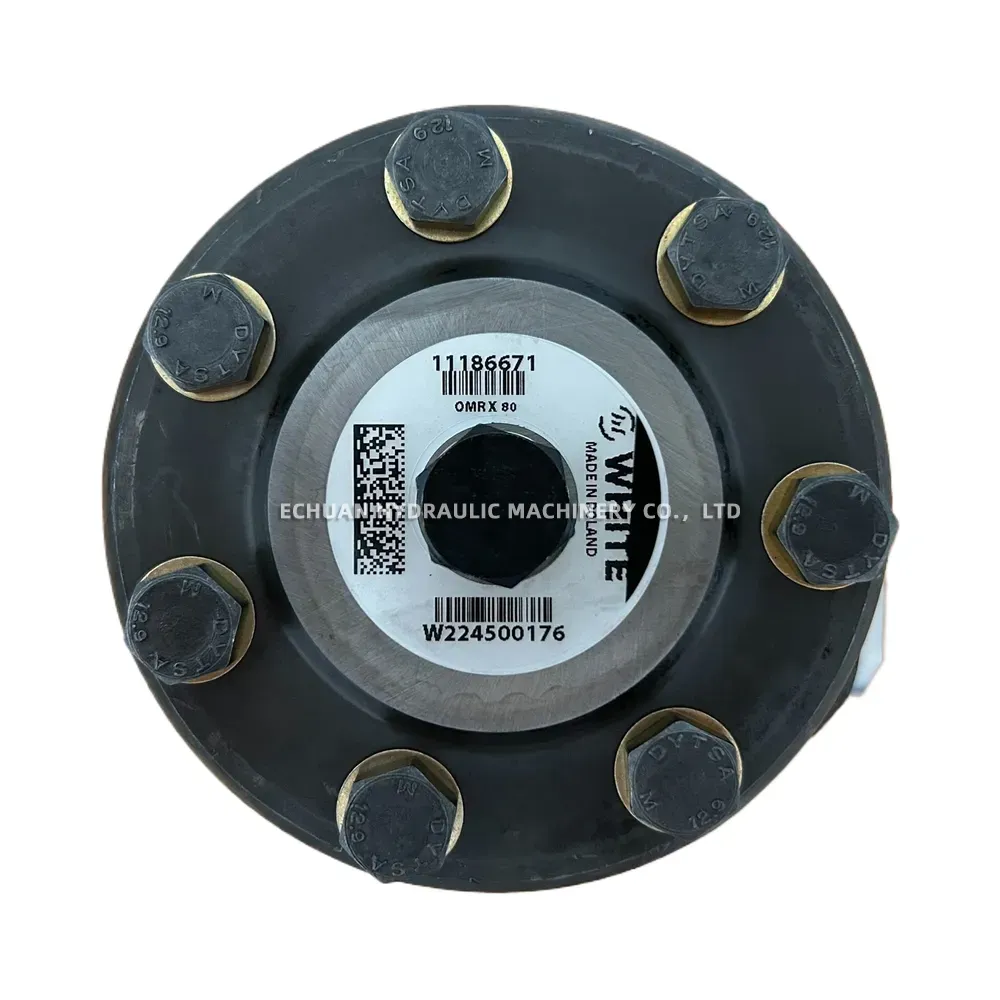

WHITE OMRX80 11186671
The WHITE OMRX80 11186671 is a robust low-speed, high-torque (LSHT) orbital hydraulic motor, now part of the Danfoss product family. Designed for medium-duty applications, it offers a compact size combined with high power density. The OMRX series is known for its durability and efficiency, featuring roller bearings for extended operational life and smooth performance. This specific model is configured with specific mounting, shaft, and port options suitable for various industrial, mobile, and agricultural machinery requiring reliable hydraulic rotary power.

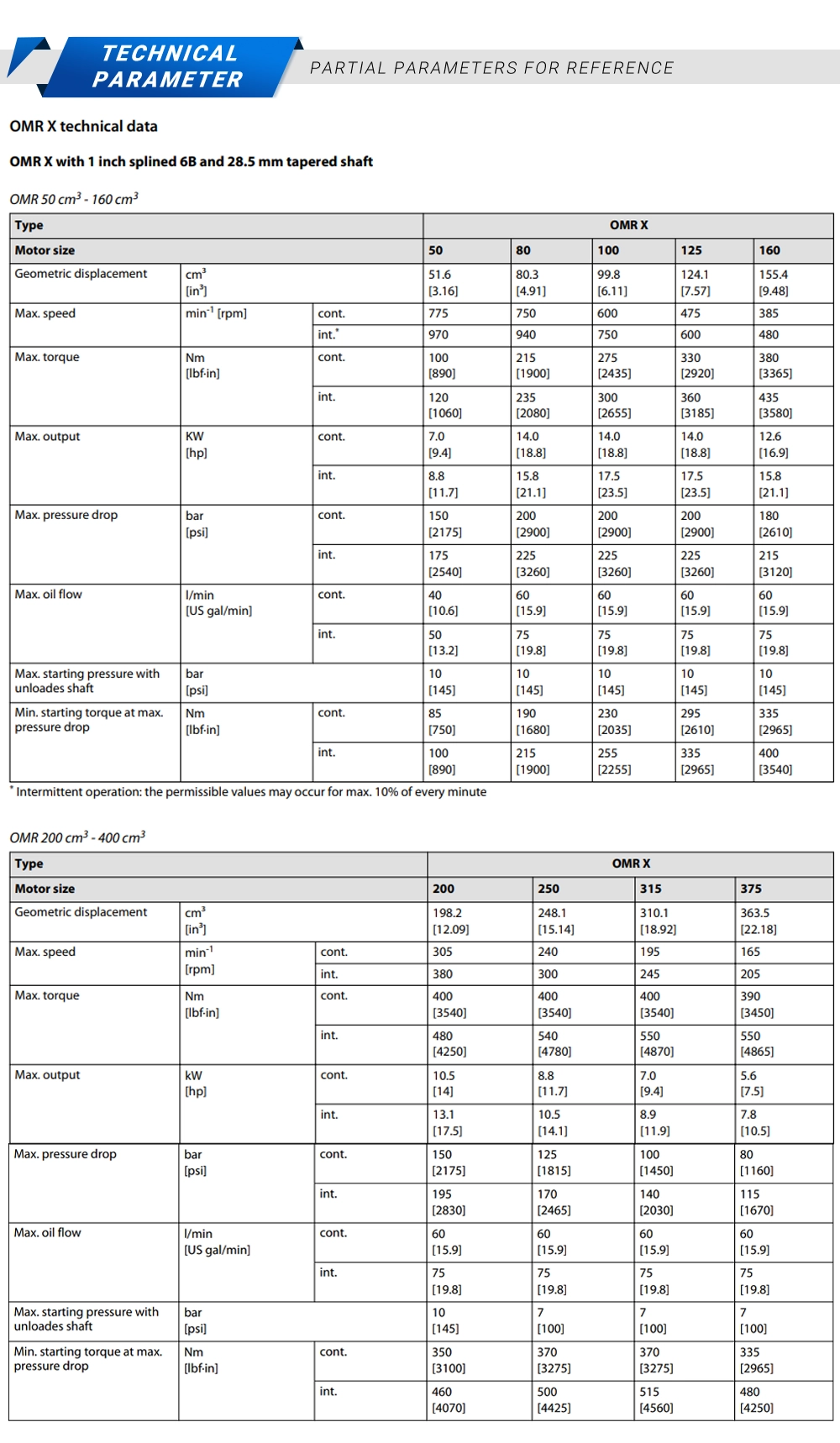

Technical Specifications:
- Part Number: 11186671
- Series: OMRX (Roller Stator)
- Displacement: 81.4 cm³/rev [5.0 in³/rev]
- Mounting Flange: 4 Bolt Magneto – SAE A (Pilot Dia. 82.5 mm [3.25 in], Bolt Circle 106.4 mm [4.19 in])
- Output Shaft: 1 inch Keyed (Woodruff Key 1/4 x 1 inch)
- Ports: Staggered 7/8-14 UNF O-ring (SAE ORB -10)
- Drain Port: 7/16-20 UNF O-ring (SAE ORB -4)
- Max Continuous Speed: 775 RPM
- Max Continuous Flow: 60 L/min [16 US gal/min]
- Max Continuous Torque: 161 Nm [1425 lb-in]
- Max Continuous Pressure Drop: 140 bar [2000 psi]
- Max Intermittent Pressure Drop: 175 bar [2500 psi]
- Rotation: Standard
WHITE OMRX80 11186671
Model:WHITE OMRX80 11186671
| Brand | WHITE |
|---|---|
| Model | OMRX80 11186671 |
| Part No. | WHITE OMRX80 11186671 |
| Category | Hydraulic pumps |
| Link | https://www.echuan-hydraulic.com/product/white-omrx80-11186671 |
