Product Description
Beckhoff CX5020-0111 Embedded PC
The Beckhoff CX5020-0111 is a robust and compact DIN rail mountable Embedded PC from the CX5000 series. It is equipped with a powerful Intel Atom® Z530 processor, operating at 1.6 GHz. This fanless device is designed for demanding PLC and motion control applications in industrial environments. It features a comprehensive set of interfaces, including two Gigabit Ethernet ports, four USB 2.0 ports, and a DVI-I interface, providing excellent connectivity options. The CX5020-0111 directly connects to Beckhoff Bus Terminals (K-bus) or EtherCAT Terminals (E-bus), allowing for modular and scalable system expansion. It comes pre-installed with Windows Embedded Standard 2009 and the TwinCAT 2 PLC runtime, offering a ready-to-use platform for automation tasks.

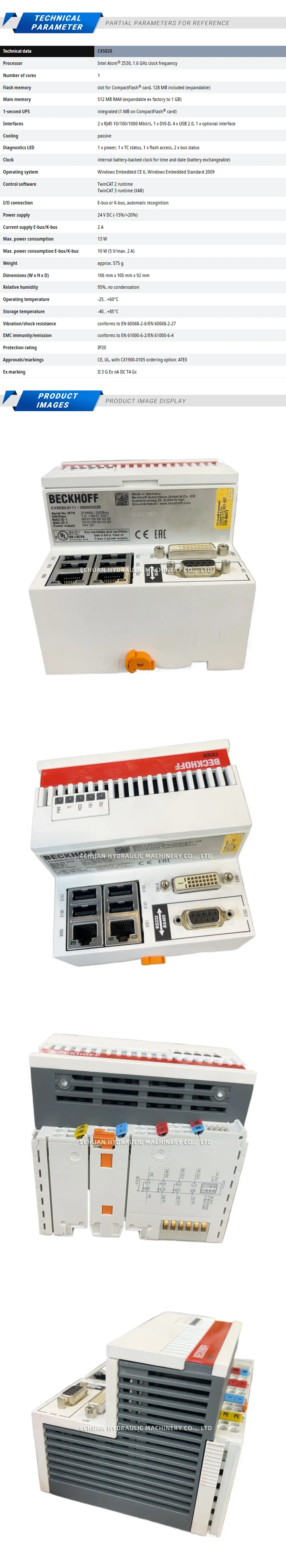

Technical Specifications:
- Processor: Intel Atom® Z530, 1.6 GHz
- Memory (RAM): 1 GB DDR2 RAM (on-board)
- Storage: Slot for Compact Flash card, 256 MB CF card included
- Interfaces: 2 x RJ45 10/100/1000 Mbit/s Ethernet, 4 x USB 2.0, 1 x DVI-I
- Operating System: Microsoft Windows Embedded Standard 2009
- Control Software: TwinCAT 2 PLC runtime
- Power Supply: 24 V DC (-15 %/+20 %)
- Dimensions (W x H x D): 100 mm x 99 mm x 91 mm
Beckhoff CX5020-0111
The Beckhoff CX5020-0111 is a compact, fanless DIN rail Embedded PC with a 1.6 GHz Intel Atom® processor, designed for high-performance PLC and motion control applications. Features Gigabit Ethernet, USB, and DVI-I interfaces.
