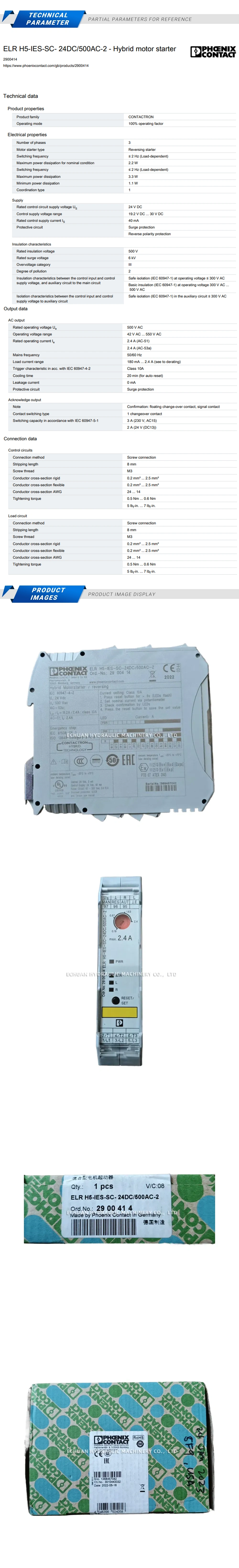

Product Description
Phoenix ELR H5-IES-SC-24DC/500AC-2 Hybrid Motor Starter
The Phoenix Contact ELR H5-IES-SC-24DC/500AC-2 is a versatile 4-in-1 hybrid motor starter designed for starting and protecting 3-phase AC motors. As part of the innovative CONTACTRON series, this compact device integrates forward running (1-direction), motor overload protection, and safety shutdown functions into a single 22.5 mm housing. It significantly reduces wiring time, saves valuable cabinet space, and increases system availability thanks to its wear-free solid-state switching technology combined with a robust relay. Ideal for industrial applications, it offers an adjustable current setting for precise motor protection and supports safety applications up to SIL 3 and PL e.
Technical Specifications:
- Control Voltage: 24 V DC
- Output Voltage (Motor): 42 V AC to 550 V AC
- Maximum Output Current: 2.4 A
- Safety Integrity Level: Up to SIL 3 (IEC 61508), PL e (EN ISO 13849)

Phoenix ELR H5-IES-SC-24DC/500AC-2 Hybrid Motor Starter
Shop the Phoenix Contact ELR H5-IES-SC-24DC/500AC-2, a compact 4-in-1 hybrid motor starter for 3-phase motors up to 2.4A. Features forward running, adjustable overload protection, and SIL 3/PL e safety in a space-saving 22.5mm design.
