Product Description

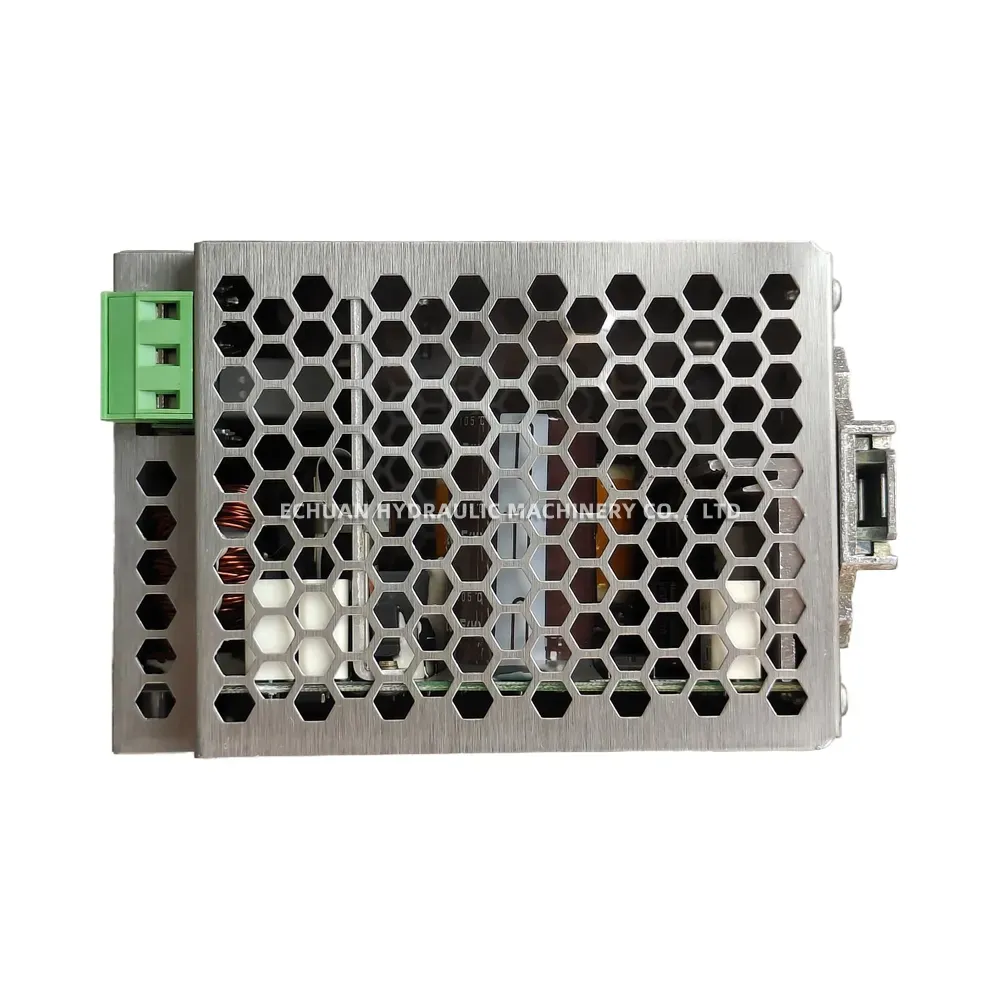

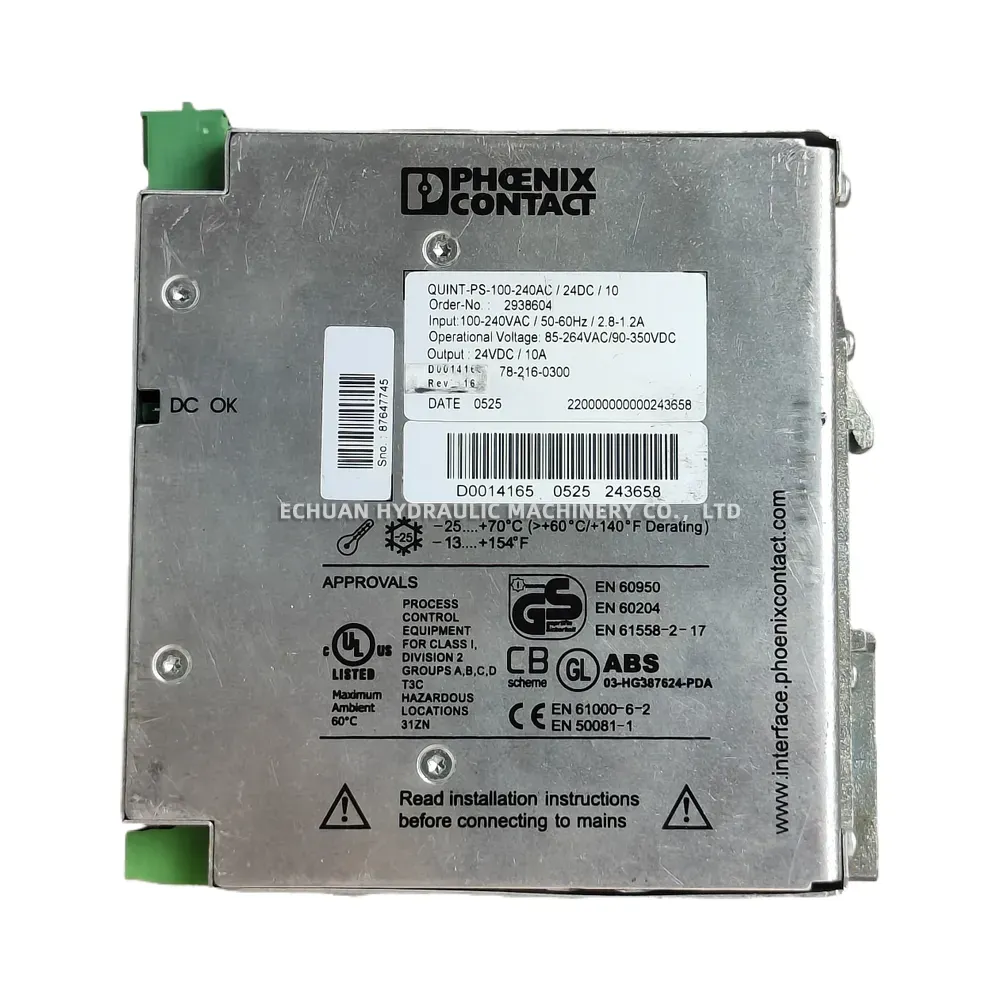

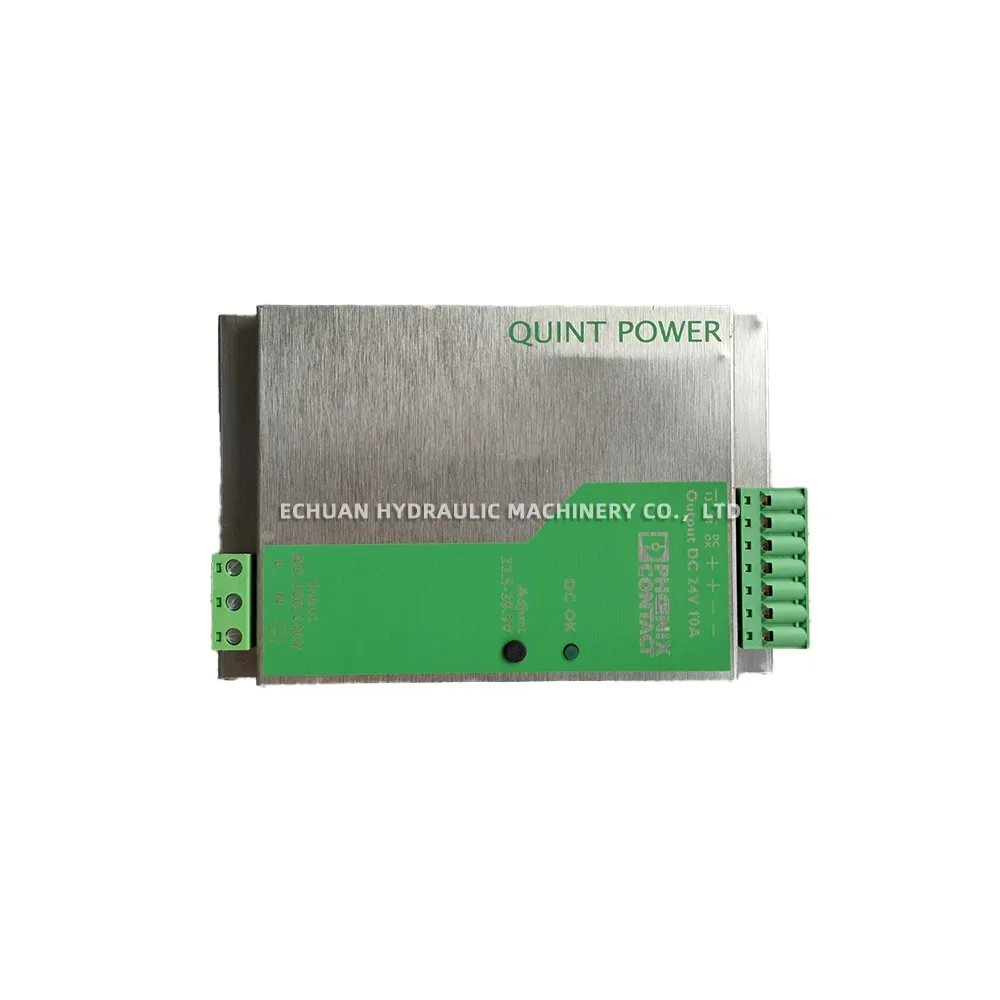

Phoenix QUINT-PS-100-240AC / 24DC/ 10
The Phoenix Contact QUINT-PS-100-240AC/24DC/10 is a high-performance, single-phase power supply designed for universal use in demanding industrial environments. As part of the advanced QUINT POWER family, it ensures maximum system availability through innovative features such as SFB (Selective Fuse Breaking) Technology, which provides up to six times the nominal current for 12 ms to trip standard circuit breakers reliably. This unit delivers a stable and adjustable 24V DC output at 10A. Its preventive function monitoring diagnoses and reports critical operating states before faults occur, enhancing operational reliability. With a wide input range and comprehensive international approvals, this DIN rail mountable power supply is the ideal choice for powering critical loads in automation, machine building, and process control applications.

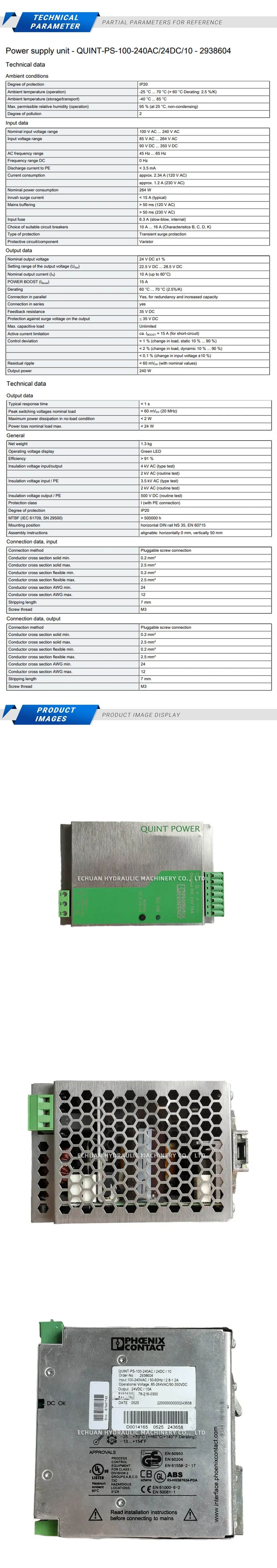

Technical Specifications:
- Nominal Input Voltage Range: 100 V AC … 240 V AC
- Output Voltage: 24 V DC (adjustable from 18 V DC to 29.5 V DC)
- Output Current: 10 A (with POWER BOOST up to 15 A)
- Output Power: 240 W
Phoenix QUINT-PS-100-240AC / 24DC/ 10
Discover the reliable Phoenix Contact QUINT-PS-100-240AC/24DC/10 power supply. This industrial DIN rail unit provides a 24V DC, 10A output with SFB Technology and preventive monitoring for maximum system uptime.
