Product Description

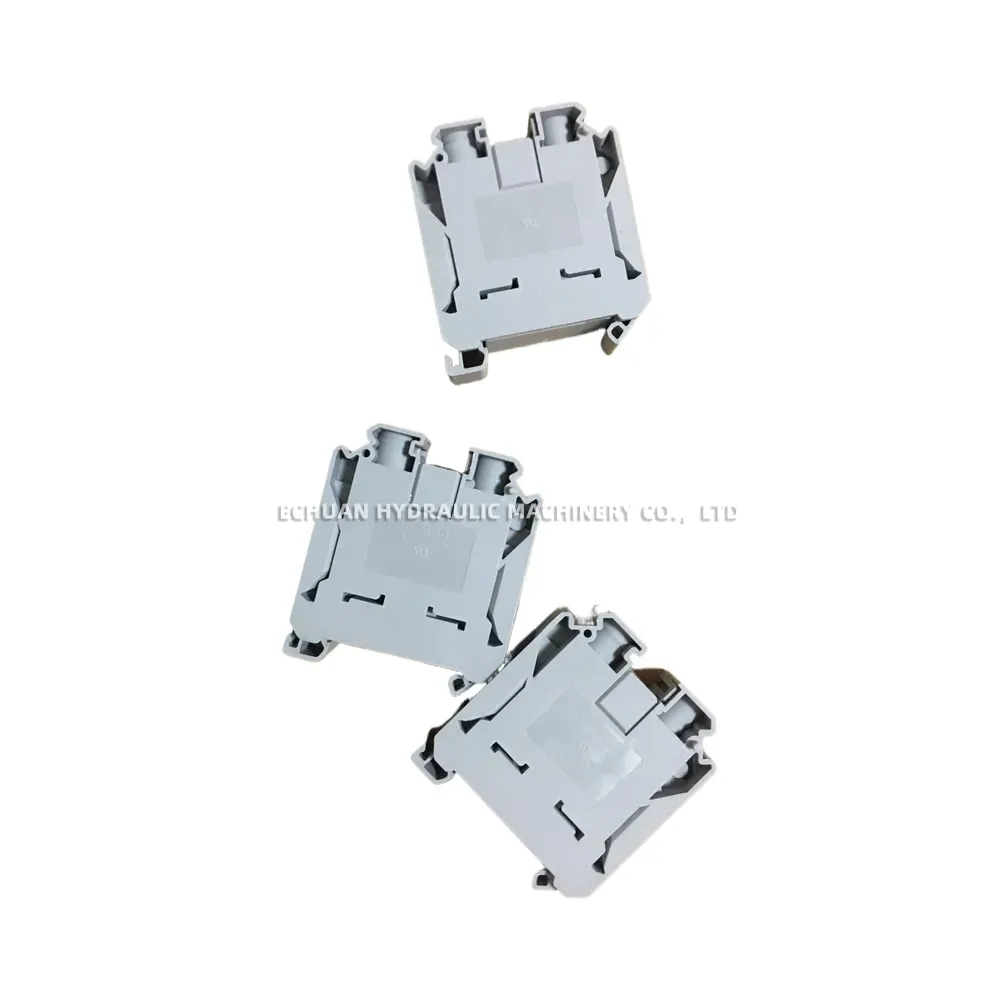

Phoenix UK35N

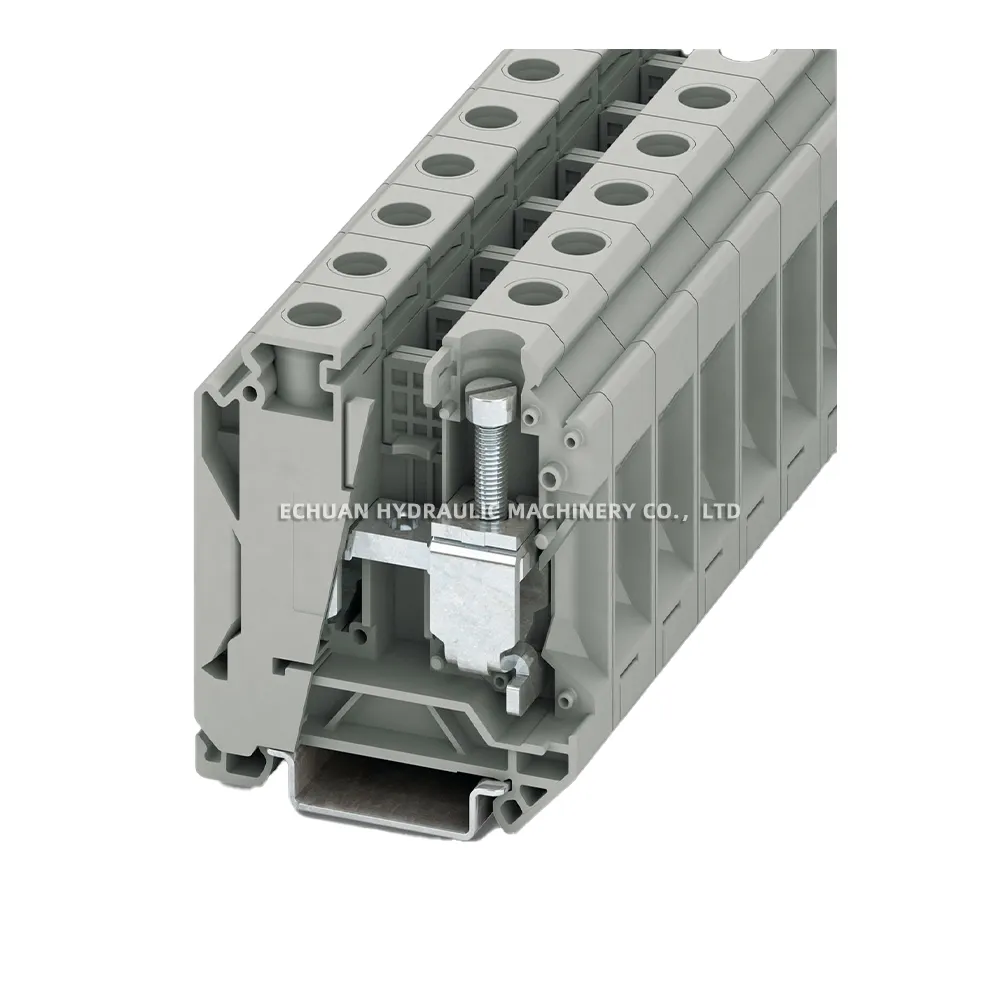

The Phoenix Contact UK 35 N is a high-current, universal feed-through terminal block designed for reliable and secure wire termination in a wide range of industrial applications. It features the proven screw connection technology, ensuring a stable and vibration-proof connection for conductors up to 50 mm². Its universal foot allows for flexible mounting on various DIN rail types, including NS 32, NS 35/7,5, and NS 35/15. The robust design and high-quality materials make the UK 35 N an ideal choice for power distribution and control panel applications where durability and safety are paramount.
Technical Specifications:
- Nominal Voltage: 1000 V
- Nominal Current: 125 A
- Connection Method: Screw connection
- Conductor Cross Section: 1.5 mm² – 50 mm² (AWG 16 – 1/0)
- Mounting Type: DIN rail: NS 35/7,5, NS 35/15, NS 32
- Dimensions (W x L x H): 15.1 mm x 50 mm x 62 mm
- Color: Gray
Phoenix UK35N
Discover the Phoenix Contact UK 35 N, a high-current feed-through terminal block with a reliable screw connection. Ideal for DIN rail mounting, it supports conductors up to 50 mm² and is rated for 1000V/125A, ensuring secure connections in industrial control panels.
| Brand | Phoenix |
|---|---|
| Model | UK35N |
| Category | Electrical |
