Product Description

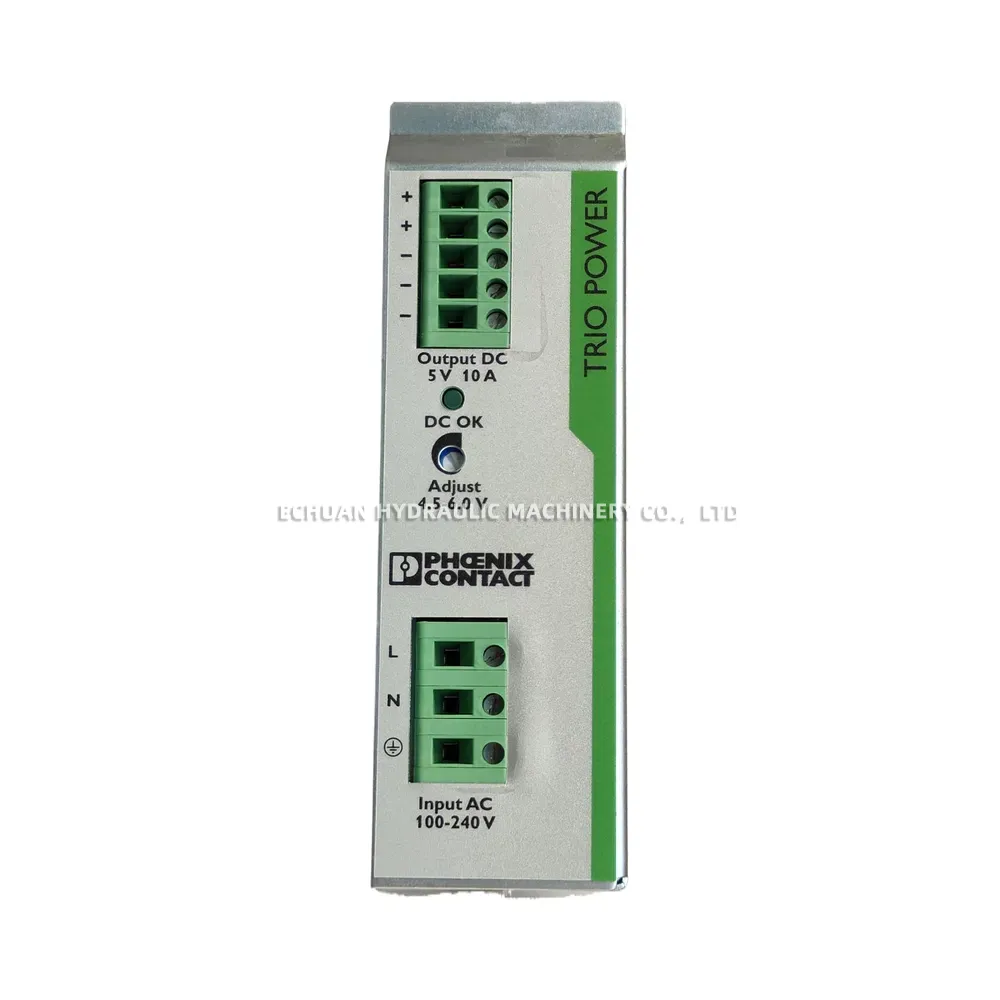

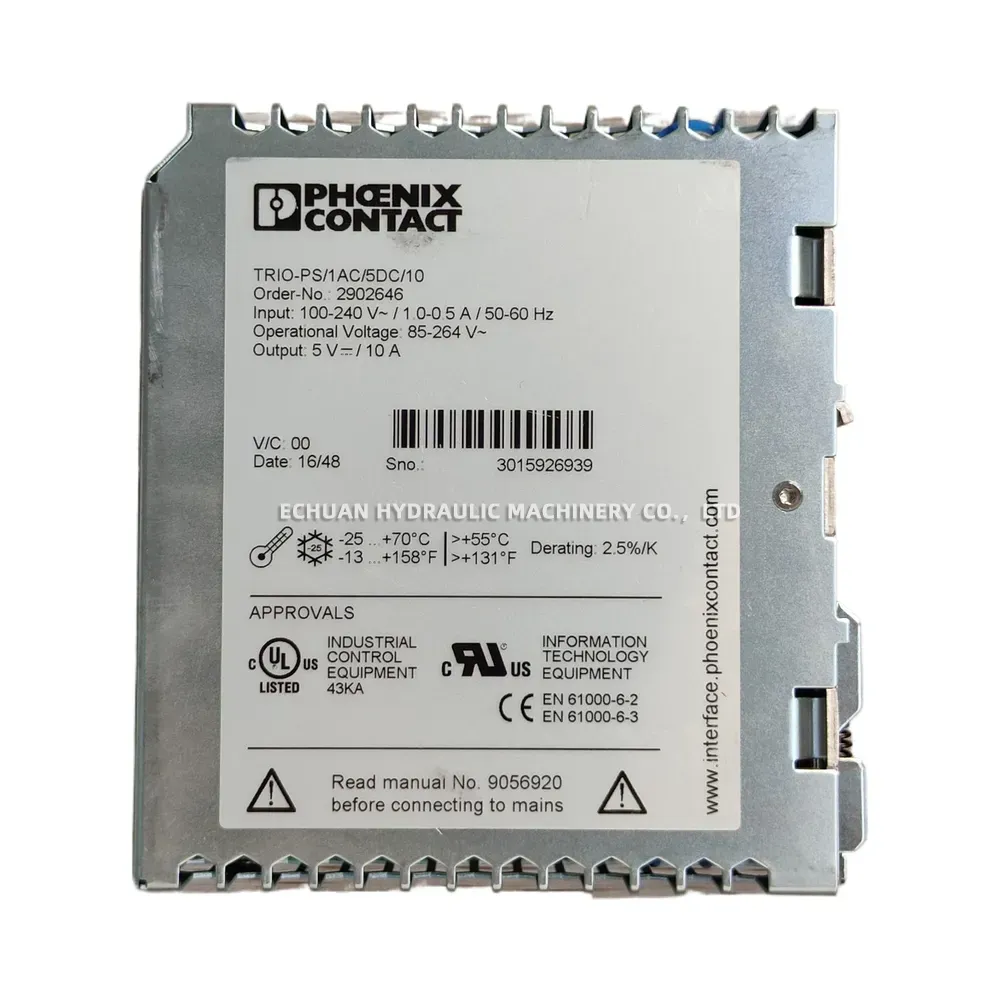

Phoenix TRIO-PS/1AC/5DC/10
The Phoenix Contact TRIO-PS/1AC/5DC/10 is a high-performance, single-phase primary-switched power supply from the TRIO POWER family. Designed for DIN rail mounting, this compact unit is particularly suited for industrial machine building and demanding applications. It features a robust electrical and mechanical design, ensuring a reliable power source even under challenging ambient conditions. The tool-free push-in connection technology allows for fast and easy installation, while the dynamic boost function provides extra power to start difficult loads, delivering up to 150% of the nominal current for short periods. With its high efficiency and wide temperature range, this power supply offers a durable and energy-saving solution for your control cabinet.
Technical Specifications:
- Input Voltage Range: 85 V AC … 264 V AC (Single Phase)
- Nominal Output Voltage: 5 V DC ±1%
- Nominal Output Current: 10 A
- Output Power: 50 W
- Connection Method: Push-in connection
- Ambient Temperature (Operation): -25 °C … 70 °C
- Efficiency: > 88 % (at 230 V AC)
Phoenix TRIO-PS/1AC/5DC/10
Discover the reliable Phoenix Contact TRIO-PS/1AC/5DC/10, a compact single-phase DIN rail power supply providing a stable 5V DC output at 10A. Ideal for industrial applications with easy push-in connection and dynamic boost.
| Brand | Phoenix |
|---|---|
| Model | TRIO-PS/1AC/5DC/10 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/phoenix-trio-ps-1ac-5dc-10 |
